Sealmaster®
700409

Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing, and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction. Depending on your preference, these bearings are available in both inch and metric shaft sizes with a wide variety of cast iron, stamped steel or rubber mount housings, sealing and lubrication options or industry specific solutions.

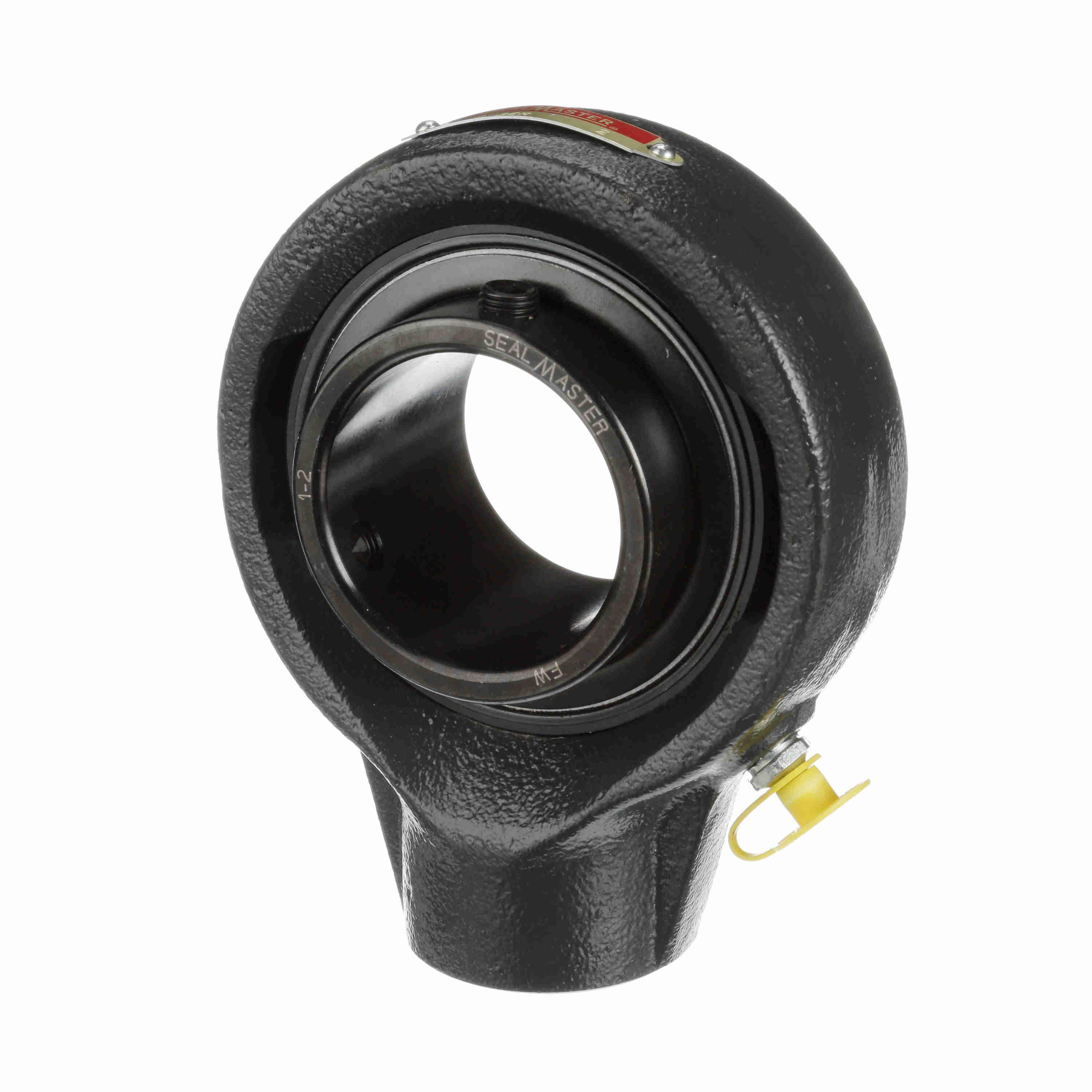

Sealmaster® Hanger Ball Bearing Unit, Non-Expansion Standard-Duty, Series: SEHB, 2 in Bore, 4-3/8 in OD, 2-1/32 in Width, 7889 lb Dynamic/5216 lb Static Load, Set Screw Collar Locking, Cast Iron Bearing, Felt Seal, Brass Cage, 3550 rpm Maximum, -20 to 220 deg F, Uncoated

• Wide outer ring
• Zone hardened inner race
• 52100 steel insert
• GoldPlex-HP grease
• Round/straight bore
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication
• Sealmaster exclusive lock pin and dimple for direct lubrication and anti-rotation

• Instruction/Ins... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_764056_Installation_Manual.pdf
• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_700389_Specification_Sheet.pdf
