Warner Electric® MC5.5-78

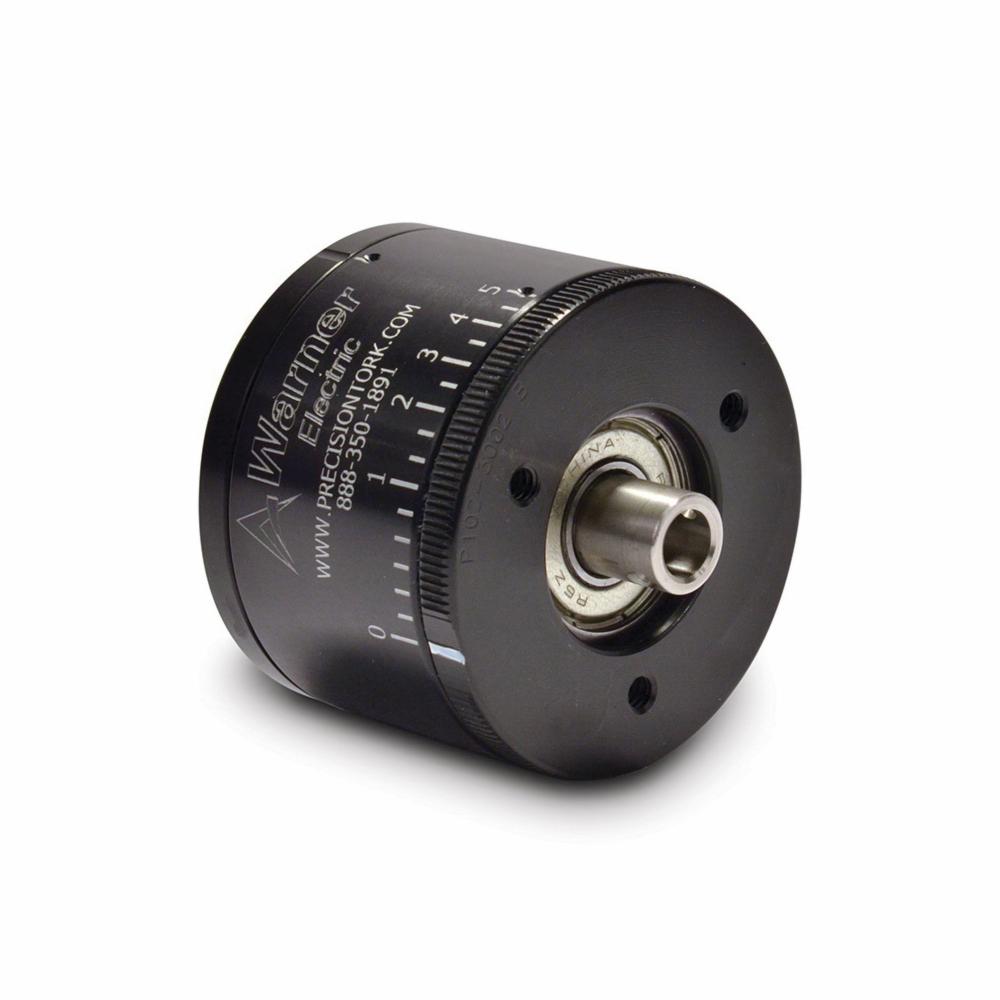

Warner Electric® Precision Tork™ MC5.5-78 Permanent Magnet Clutch With 3/16 in Keyway, 7/8 in Dia Bore, 5.29 in OD, 1 to 45 in-lb Torque, 1800 rpm Max
- Manufacturer: Regal Rexnord
- Brand: Warner Electric®
- BSC Item#: MC5.5-78 WARN
- MPN: MC5.5-78
- UPC: 786582564092
- Min. Order Qty: 1
- Qty. Interval: 1 Availability: Call for Availability
-
Login to see price
Precision Tork™ units provide constant torque independent of slip speed. They offer excellent overload and jam protection for all drive train components and also provide soft starts with zero slip when a preset torque is reached. Precision Tork™ permanent magnet clutches and brakes do not require maintenance and provide extremely long life.
Warner Electric® Precision Tork™ Permanent Magnet Clutch, Series: MC Series, 7/8 in Bore, 5.29 in OD, 3.21 in Overall Length, 1 to 45 in-lb Torque, 1800 rpm Maximum, Bolt Hole Mounting, Stainless Steel, Dichromate Coated
- Hollow bore and solid shaft configurations
- Dichromate coating for improved corrosion resistance
- Torque is set with a large knurled adjustment ring
- Infinite adjustability between minimum and maximum settings, allows units to be fine tuned to your unique requirement
- Easy to read graduations
- Smallest possible transition from static to dynamic torque, virtually eliminates the stick-slip phenomenon associated with friction devices
- Extremely accurate, Precision Tork™ units out perform all other devices at low rpm
Catalog
| Application | : | For food processing applications |
