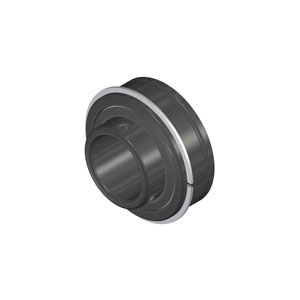

Sealmaster®
705150

Sealmaster® ERX-TREME™ PN gold bearings feature high phosphorus, electroless nickel coated steel with patented seal technology and tapered land outer race profile available in either setscrew or Skwezloc® concentric locking collar with a cylindrical OD and snap ring for easy installation in a housing. The high performance triple lip seal is the latest innovation of over 10 patents on sealing technology. The combination of stainless flingers and FKM lip materials provide a strong contaminant resistance and GoldPlex® FG (USDA H1) food grade grease loss. Specially engineered for industries with corrosive wash down environments such as food and beverage, pharmaceuticals and chemical processing, the ERX-TREME™ PN gold mounted ball bearings provide outstanding performance in demanding corrosive environments.

Sealmaster® Ball Bearing Insert, Expansion Standard-Duty Straight Bore, Series: ERX HI, 1.563 in Bore, 3.15 in OD, 1.938 in Width, 7340 lb Dynamic/4467 lb Static Load, Steel Bearing, Nomex® Seal, Brass Cage, 1800 rpm Maximum, 400 deg F, Black Oxide Coated

• The inner and outer ring of the Sealmaster® ERX-TREME™ PN gold bearing are high phosphorous, electroless nickel plated 52100 steel
• High temperature bearing with increased internal clearance to accommodate thermal expansion of components
• Half dog and wire setscrew locking
• Zone hardened inner race
• High temperature Krytox® 227 grease
• Land riding retainer

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_700310_Catalog.pdf
