Martin
35BS26 1

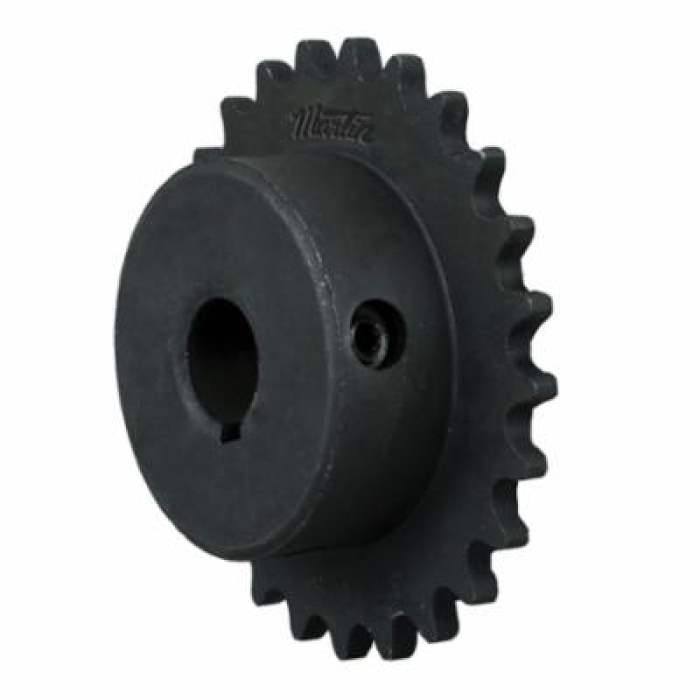

Martin 35BS26 1 Bored-to-Size Type BS Single Pitch Roller Chain Sprocket With Keyway, 1 in Dia Bore, 3.313 in OD, #35 Chain, 26 Teeth, 3/8 in Pitch, Steel

  • Manufacturer: Martin Sprocket & Gear
  • Brand: Martin
  • BSC Item#: 35B26-1
  • MPN: 35BS26 1
  • UPC: 697950002040
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

These finished bore sprockets are shaft ready and come complete with keyways and setscrews. The keyways are on center line of the tooth. Bored to size sprockets with 1/2 in bores and smaller are stocked with (2) setscrews only.

Martin Single Pitch Roller Chain Sprocket, Bored-to-Size Type BS, 1 in Bore Dia, 3.313 in Outside Dia, #35 Chain, 26 Teeth, 3/8 in Pitch, 3.111 in, 2 in Hub Dia, 5/16-18 x 5/16 in Screw, 1/4 x 1/8 in Keyway, 7/8 in Length Through Bore, Steel

Type      :      Bored-to-Size Type BS
Bore Diameter      :      1 in
Outside Diameter      :      3.313 in
Chain Size      :      #35
Number of Teeth      :      26
Pitch      :      3/8 in
Pitch Diameter      :      3.111 in
Hub Diameter      :      2 in
Screw Size      :      5/16-18 x 5/16 in
Keyway Size      :      1/4 x 1/8 in
Length Through Bore      :      7/8 in
Material      :      Steel
  • Keyway is on center line of tooth
  • Stock finished bores
  • Non-hardened teeth
  • pdf Catalog https://www.bsc-ind.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_41SH32_Catalog.pdf
