Micron®
64-119517-D939

In addition to standard NEMA frame sizes, Micron® NemaTRUE™ planetary gearheads are now available in three metric sizes 60, 90 and 115 mm and with the innovative RediMount™ adapter kit, which allows for quick and error-free mounting to any servo motor. Micron® TRUE Planetary™ gearing technology allows for highly efficient and precise torque multiplication for servo motor applications. The NemaTRUE™ has many ratios in stock for immediate delivery.

Micron® TRUE Planetary™ Spur Gearhead, Cyclical-Duty, Series: NemaTRUE™, 70:1 Gear Ratio, RediMount™ Motor Mounting System Input, Single Shaft Output, 3/8 in Output, 57 rpm Output Maximum Speed, 4000 rpm Input Maximum Speed, 137 in-lb, 15 arcmin Backlash, 88 % Efficiency, Grease Lubrication, In-Line Vertical Mount, Anodized Aluminum, 2.36 in W x 2.36 in H

• RediMount™ system provides error-free motor installation
• Sealed deep groove ball bearings provide high radial load carrying capability
• HRC 55-60 steel gears provide superior wear resistance and increased backlash integrity
• Anodized aluminum housing reduces weight and prevents corrosion

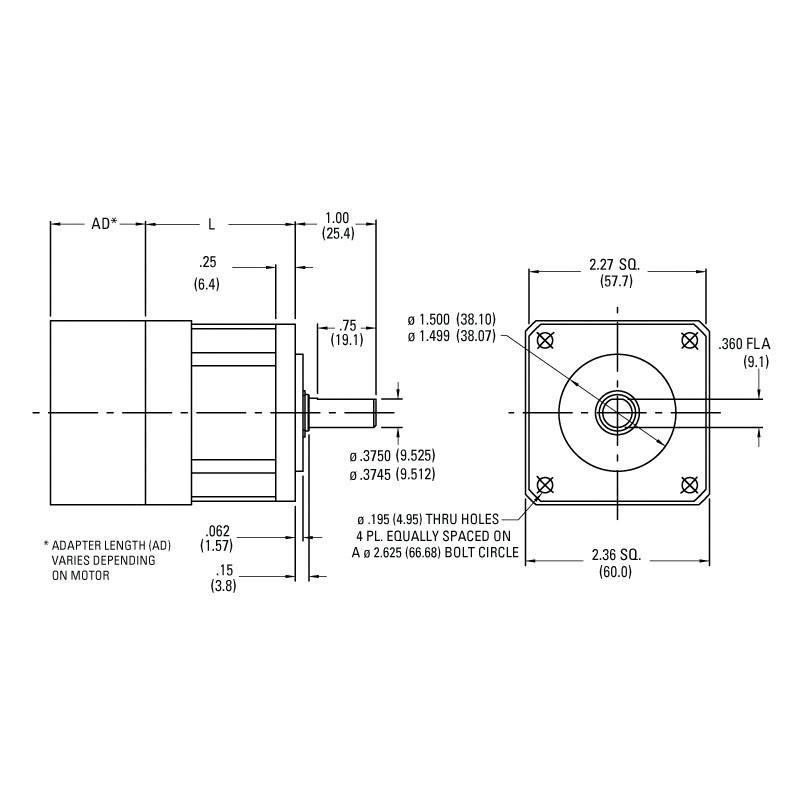

• Adapter length (AD) may vary depending on motor
• Stainless steel output shaft
• Size 23 frame
• RM060-27 RediMount™ kit

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Micron_52_118617_D018_Catalog.pdf
• Instruction/Ins... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Micron_52_118617_D018_Manual.pdf
