LEESON®
M1135115.00

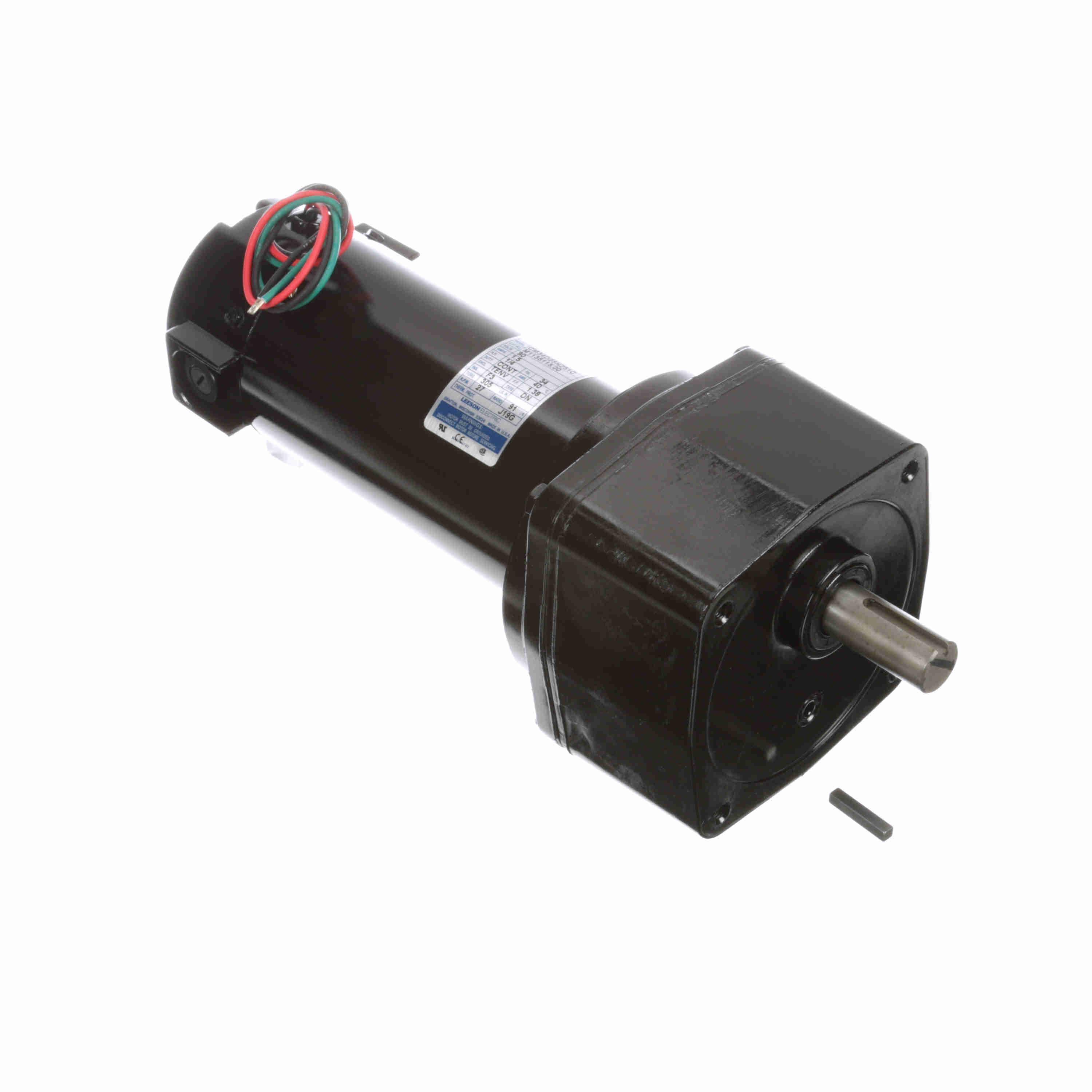

LEESON® Gear Motor, Parallel Shaft Continuous Duty, Series: PE350, 90 VDC, 1.5 A Full Load Amperage, 0.25 hp, 3, 7 rpm Maximum, 3/4 in Shaft Dia, 1.62 in Shaft Length, Reversible, 305 in-lb, 91:1 Gear Ratio, Permanent Split Capacitor Motor, Ball Bearing, 374 lb Overhung Load, Special Mount, 40 deg C Ambient, Class F Insulation, Totally Enclosed Nonvented (TENV), Die Cast Aluminum Housing, 13.31 in x 6 in W x 6.75 in H

• Precision machined gearing and hardened for maximum load capability
• Oversized output bearings for greater overhung load capacity and long life
• High carbon alloy output shaft provides maximum strength and rigidity
• All needle bearing journals are precision ground after heat treating to provide maximum fit and finish
• Heavy duty industrial oil seals keep lubricant in and dirt out
• Gears and bearings are splash lubricated with permanent, heavy duty gear oil
• Sub-fractional horsepower DC motors
• Performance matched for continuous duty service
• Lubrication is permanent semi-fluid grease, reducing possibility of leakage
• Output shafts have needle bearings to handle high load capacities

• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/LEESON_M1135115_00_Specification_Sheet.pdf
