To allow you to use an off the shelf Torq/Gard® clutch on shafts of various sizes, the clutch was designed with a larger than usual hub bore. Shafts smaller than the maximum diameter are accommodated with standard Browning® bushing kits.

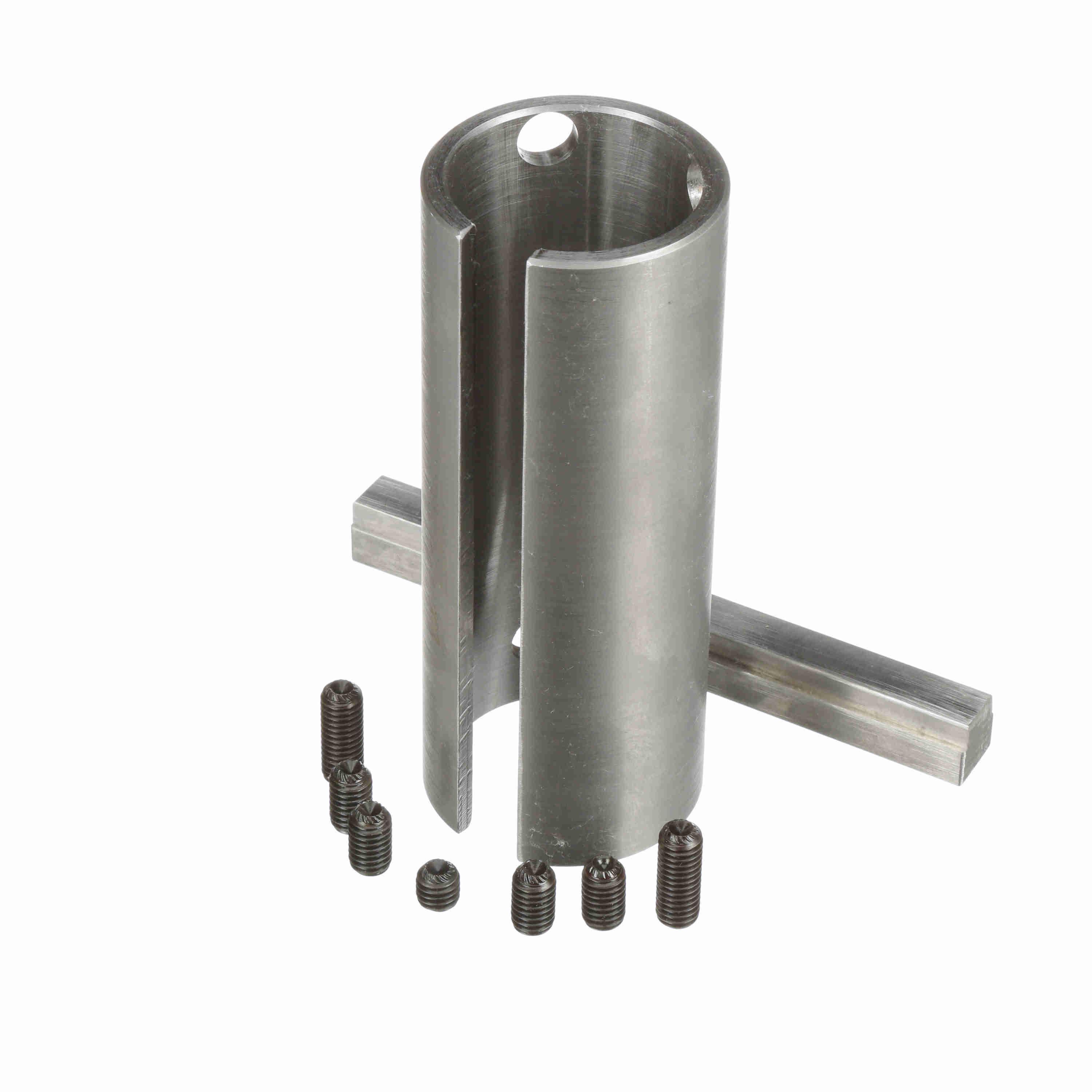

Browning® Bushing Kit, 1-3/4 in Bore, For Use With: Torq/Gard® TGC400 and TGC800 Model Overload Clutch
- Torq/Gard® can be made into couplings by ordering separate components
- Single strand TG sprocket kits to bolt on are stocked
- Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
- Bushing kit includes key and setsrews for easy installation
- Solid Flange and Double Split Barrel - Assures better concentricity to the shaft
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
-
Catalog
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_60BU20MM_Catalog.pdf
-
Warranty Inform...
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_A175382_Warranty.pdf
Application |
: |
Aggregate, Cement, Food, Metals, Minerals, Mining, Packaging Machinery and Unit Handling Industries |
