Browning®
766960

Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.

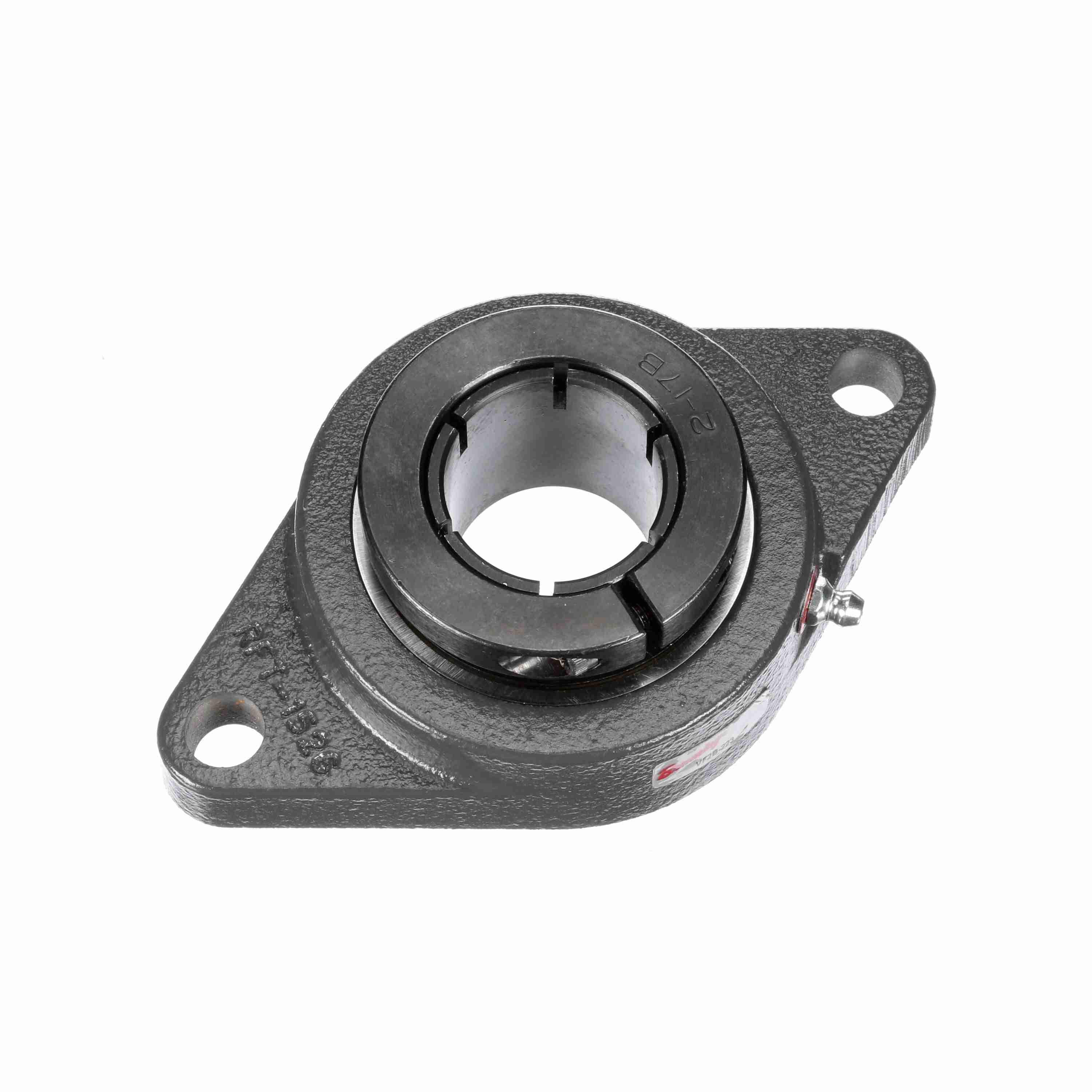

Browning® Ball Bearing Unit, Non-Expansion Normal Duty, Series: VF2B 200, 1-1/4 in Bore, 4-19/32 in Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 5-9/16 in Overall Length/Diameter, 1-5/8 in Overall Depth, 3-1/8 in Overall Height, BOA Concentric Locking Device, Steel Bearing, Nitrile Rubber Seal, 4381 lb Dynamic/2567 lb Static Load, 4500 rpm Maximum, 200 deg F, Gray Painted

• A positive-contact molded nitrile rubber contact seal with an auxiliary flinger element comes standard
• An anti-rotation rivet prevents outer ring creep or rotation within the housing
• Semi solid cast iron rugged base design provides an excellent mounting foundation
• BOA is a concentric locking collar clamp design that results in near-perfect concentricity of the shaft to the bearing bore
• Powder coat epoxy cast iron housing

• Instruction/Ins... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_764056_Installation_Manual.pdf
• Warranty Inform... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_A175382_Warranty.pdf
• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_VF2B212_Specification_Sheet.pdf
