Martin TB20L050

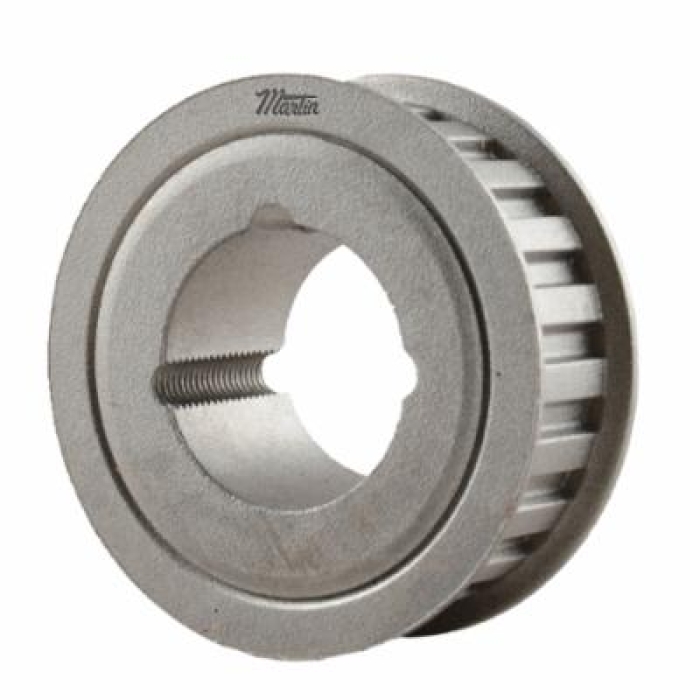

Martin TB20L050 Solid Type CF-1 Stock Timing Pulley, 1/2 to 1 in TB Bushed Bore, 2.357 in OD, 20 Grooves, 2.387 in Dia Pitch, 0.563 in W Face
- Manufacturer: Martin Sprocket & Gear
- Brand: Martin
- BSC Item#: TL20L050
- MPN: TB20L050
- UPC: 697950083278
- Min. Order Qty: 1
- Qty. Interval: 1 Availability: Call for Availability
- Sold As: 1/PK
-
Login to see price
Martin timing pulleys are manufactured to extremely close specifications and are stocked in minimum plain bore, taper bushed, QD bushed styles depending on size and pitch. Synchronous sprockets are non-slip toothed drives that require no lubrication. These sprockets have a wide speed range, are very efficient and make less noise than chain drives. Teeth on the belts are molded to conform with and engage the teeth on a mating sprocket.
Martin Stock Timing Pulley, Solid Type CF-1, TB Bushed Bore, 1/2 to 1 in Bore Dia, 2.357 in Outside Dia, 2.387 in, 20 Grooves, 3/8 in Pitch, 0.563 in Face Width, 2.613 in Flange Dia, 1-11/16 in Hub Dia, 1008 Bushing, 7/8 in Overall Length, For Use With: 1 in W Type L Belt, Steel
| Type | : | Solid Type CF-1 |
| Bore Type | : | TB Bushed |
| Bore Diameter | : | 1/2 to 1 in |
| Outside Diameter | : | 2.357 in |
| Pitch Diameter | : | 2.387 in |
| Number of Grooves | : | 20 |
| Pitch | : | 3/8 in |
| Face Width | : | 0.563 in |
| Flange Diameter | : | 2.613 in |
| Hub Diameter | : | 1-11/16 in |
| Bushing Type | : | 1008 |
| Overall Length | : | 7/8 in |
| Suitable For Use With | : | 1 in W Type L Belt |
| Material | : | Steel |
