Climax Metal Products Company stocks a complete line of external Shrink Discs in both Standard and Heavy Duty designs. Climax Shrink Discs are manufactured from heat treated high carbon alloy steel and are supplied with zinc-plated outer rings.

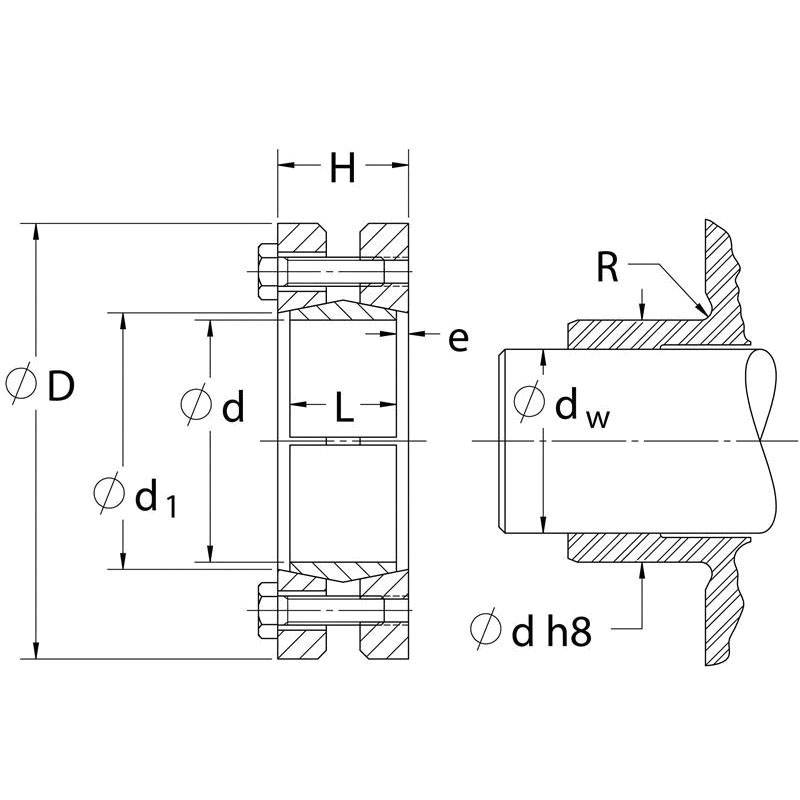

Climax Shrink Disc, Standard Duty, Series: C733, 125 mm Bore Dia, 215 mm Outside Dia, 13504 to 19262 ft-lb Transmissible Torque, 92598 to 114694 lbf Transmissible Thrust, M10x40 Screw, 2.339 in Overall Length, 0 to 400 deg F, Steel, Unplated
- External keyless locking device
- Inherently balanced for high speed applications
- Preferred solution for coupling hubs and hollow shaft gearboxes
- Shrink discs mount on the outside of a hub or hollow shaft, compressing it onto the shaft
- Tapered rings work like wedges to convert locking screw clamp loads into radial contact pressure
- Component deformation is elastic, so all parts return to their original fit clearances upon removal
- Shrink disc outer rings are supplied zinc plated for added corrosion protection
-
Catalog
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_C405E_212_Catalog.pdf
-
Instruction/Ins...
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_C733M_260_Installation_Manual.pdf
-
Line Drawing
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_C733M_125_Line_Drawing.pdf
-
Specification S...
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_C733M_125_Specification_Sheet.pdf
-
Technical Bulle...
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_C405E_212_Technical_Bulletin.pdf
-
VIDEO LINK
https://youtu.be/F6PWbfru7i4
