Browning® 1146760 60B76-1-15/16
Send NoImagePrint
  1. pin-int

Browning®
1146760

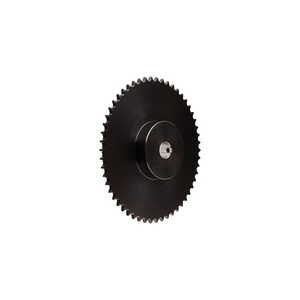

Browning® 1146760 Single Strand Finished Bore Type 1 Roller Chain Sprocket With Keyway, 1-15/16 in Dia Bore, 18.58 in OD, #60 Chain, 76 Teeth, 3/4 in Pitch, Steel

  • Manufacturer: Regal Rexnord
  • Brand: Browning®
  • BSC Item#: 60B76-1-15/16
  • MPN: 1146760
  • UPC: 662289339976
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

Browning® finished bore sprockets are offered in single strands. Offerings include 35 to 100 pitch range. Finished bore sprockets are available from 3/8 to 2-7/16 in. Hardened teeth are available up to 30 teeth.

Browning® Roller Chain Sprocket, Single Strand Finished Bore Type 1, 1-15/16 in Bore, 18.58 in OD, #60 Chain, 76 Teeth, 18.149 in Pitch Diameter, 6 in Diameter Hub, 2 in Length Through Bore, Steel

  • Furnished with standard keyway on centerline of tooth and hollow head setscrew over keyway
  • In-stock hardened sprockets are warranted to last at least twice as long as the standard (unhardened) mild steel sprockets they replace
  • For use with 3/4 in pitch ANSI chain
  • pdf Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_60A10_Specification_Sheet.pdf
  • pdf Warranty Inform... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_A175382_Warranty.pdf
Application      :      Aggregate, Cement, Agriculture, Forestry, Minerals, Mining, Pulp and Paper Industries
