Micron® 64-116841-F341
Micron® TRUE Planetary™ 64-116841-F341 NemaTRUE™ Cyclical-Duty Spur Gearhead, RediMount™ Motor Mounting System Input, Single Shaft Output, 20:1 Gear Ratio, 200 rpm Maximum Output, 551 in-lb Torque Rating
- Manufacturer: Thomson Industries
- Brand: Micron®
- BSC Item#: 64-116841F341 MICRON
- MPN: 64-116841-F341
- Min. Order Qty: 1
- Qty. Interval: 1 Availability: Call for Availability
- Sold As: 1/PK
-
Login to see price
In addition to standard NEMA frame sizes, Micron® NemaTRUE™ planetary gearheads are now available in three metric sizes 60, 90 and 115 mm and with the innovative RediMount™ adapter kit, which allows for quick and error-free mounting to any servo motor. Micron® TRUE Planetary™ gearing technology allows for highly efficient and precise torque multiplication for servo motor applications. The NemaTRUE™ has many ratios in stock for immediate delivery.
Micron® TRUE Planetary™ Spur Gearhead, Cyclical-Duty, Series: NemaTRUE™, 20:1 Gear Ratio, RediMount™ Motor Mounting System Input, Single Shaft Output, 1/2 in Output, 200 rpm Output Maximum Speed, 4000 rpm Input Maximum Speed, 551 in-lb, 15 arcmin Backlash, 0.75 in L x 0.1875 in W x 0.556 in H Keyway, 88 % Efficiency, Grease Lubrication, In-Line Vertical Mount, Anodized Aluminum, 3.54 in W x 3.54 in H
- RediMount™ system provides error-free motor installation
- Sealed deep groove ball bearings provide high radial load carrying capability
- HRC 55-60 steel gears provide superior wear resistance and increased backlash integrity
- Anodized aluminum housing reduces weight and prevents corrosion

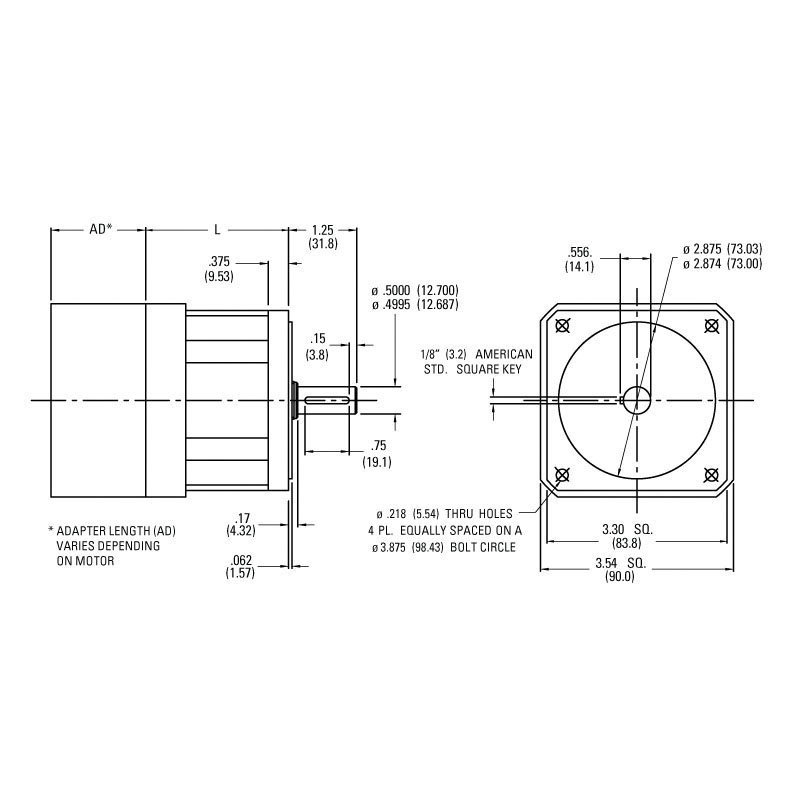

- Adapter length (AD) may vary depending on motor
- Stainless steel output shaft
- Size 34 frame
- RM090-357 RediMount™ kit
Catalog
| Standard/Approvals | : | AGMA 14|RoHS Compliant |
| Application | : | For high precision motion control applications |
