Browning® 1028612 BK57-15/16
Send NoImagePrint
  1. pin-int

Browning®
1028612

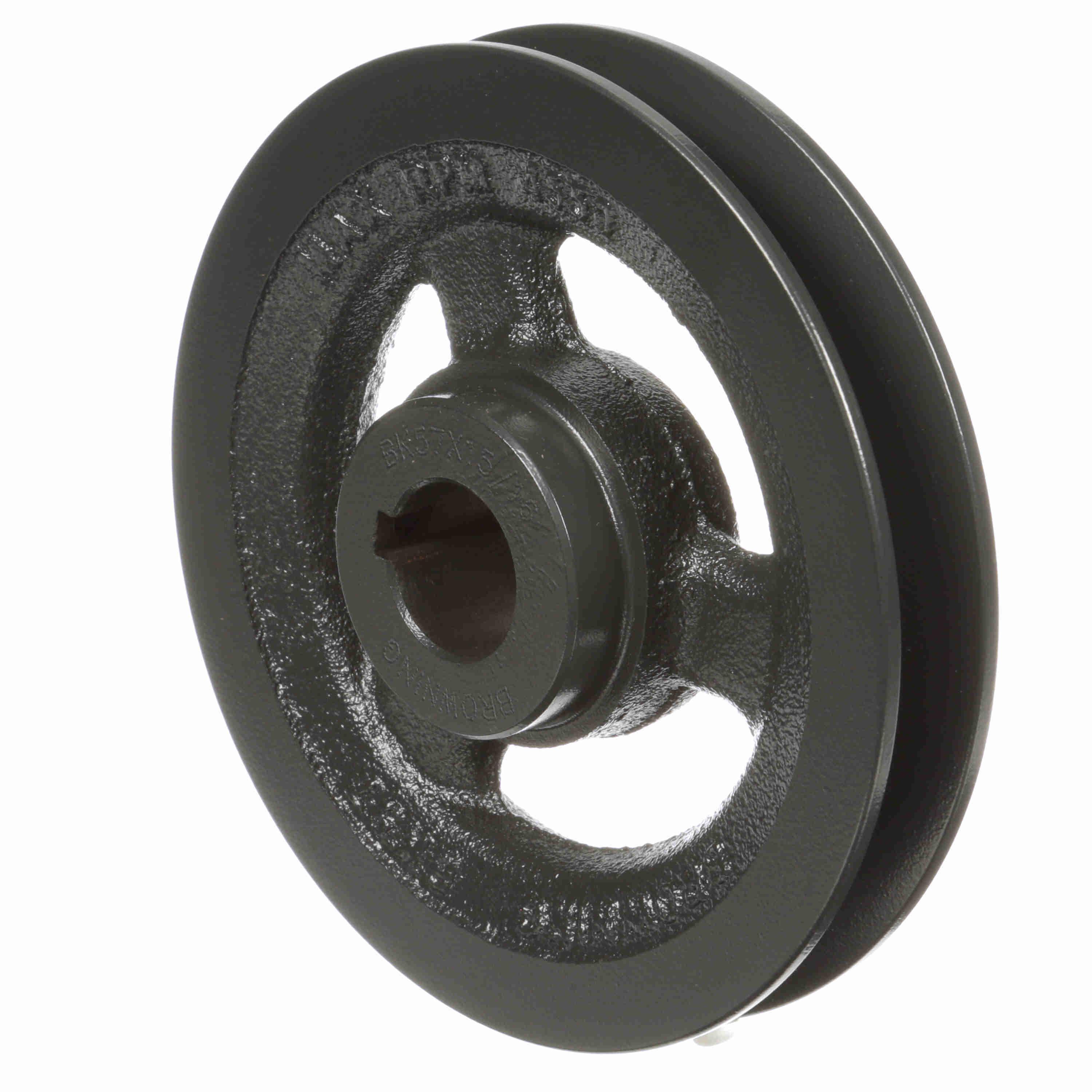

Browning® Classical Gripbelt® 1028612 BK Series Type 3 Single Groove Sheave, Finished Bore, 15/16 in Dia Bore, 5.45 in OD, 4.9 in (A)/5.4 in (B) Dia Pitch, 7/8 in W Face

  • Manufacturer: Regal Rexnord
  • Brand: Browning®
  • BSC Item#: BK57-15/16
  • MPN: 1028612
  • UPC: 662289168279
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

Browning® Classical Gripbelt® Single Groove Sheave, Type 3, Series: BK Series, Finished Bore, 15/16 in Bore Dia, 5.45 in Outside Dia, 4.9 in (A)/5.4 in (B), 7/8 in Face Width, 13/32 in Hub Projection, 1-9/32 in Overall Length, For Use With: 4L/A and 5L/B Cross Section Belt, Cast Iron

  • Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
  • 1 and 2 Grooves are available to meet any fractional horsepower requirement
  • Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
  • Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
  • Combination Groove - All Browning BK Sheaves permit the running of A, 4L, B and 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_AK46HCLEARPK_Catalog.pdf
Application      :      Agitators, Blowers and Exhausters, Belt Conveyors, Generators, Laundry Machinery, Machine Tools, Printing Machinery, Brick Machinery, Bucket Elevators, Exciters, Piston Compressors, Hammer Mils, Paper Mill Beaters, Piston Pumps, Positive Displacement Blowers and Rotary Pumps and Pulverizer Industries
