Morse®
190387

The Morse® torque limiter is a protective device that limits torque transmitted in a drive system by slipping when the torque demand exceeds a preset value as a result of shock loads, overloads or machine jams. It automatically re-engages when the overload torque has passed, no resetting is required. The Morse® torque limiter helps prevent machine damage and eliminates costly downtime. Using spring loaded friction surfaces for its operation, the Morse® torque limiter presets slip torque by adjustment of the spring force. This device can be used with a sprocket, gear, sheave or flange plate as the center member that is clamped between two friction facings.

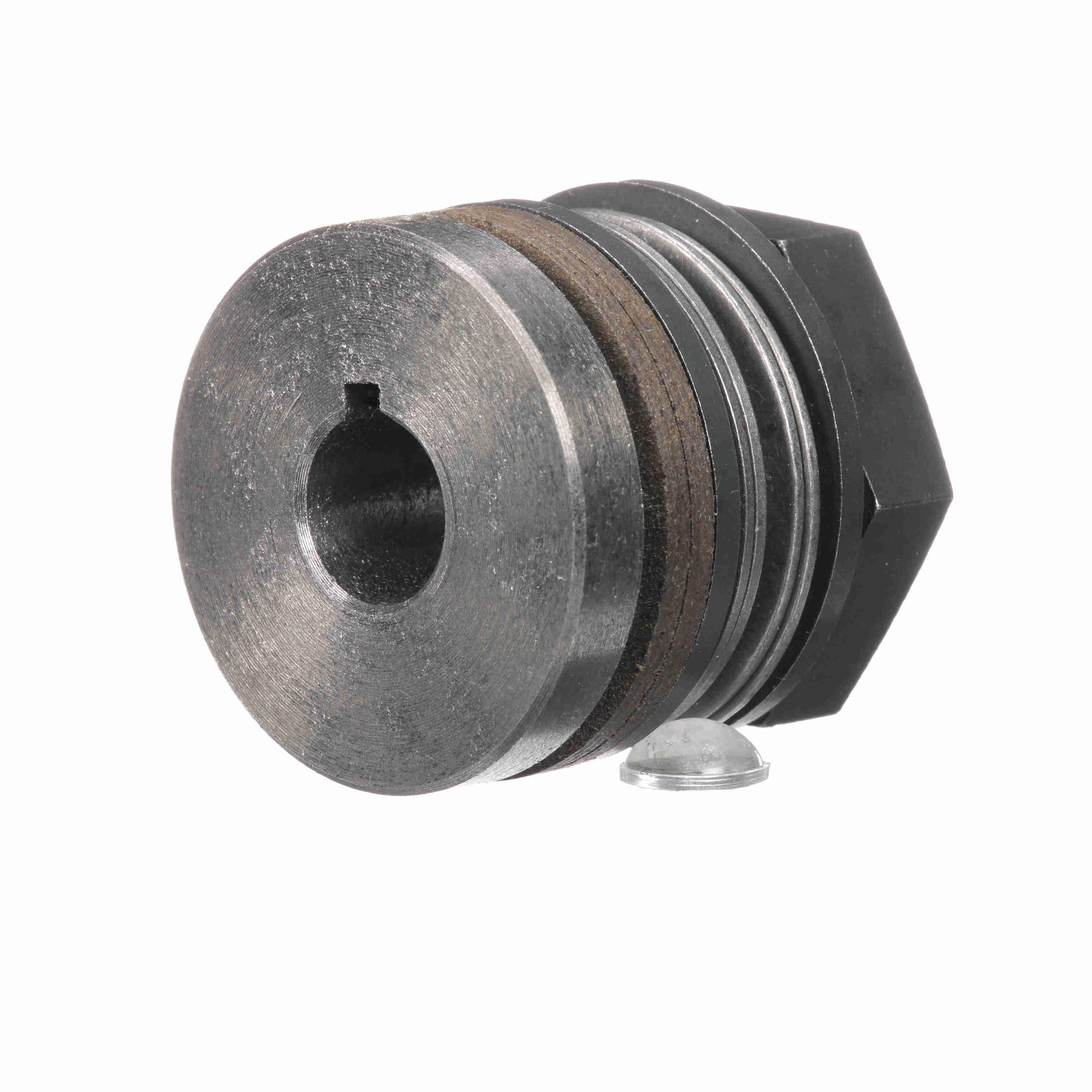

Morse® Torque Limiter, Series: TL Series, Straight Bore, 1/2 in Bore Dia, 1-1/2 in Outside Dia, 1-1/2 in Overall Length, 1 to 15 in-lb, 1000 rpm Maximum

• Minimum maintenance
• Safe, non-asbestos, no-lead pads
• Model 150
• Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
• The load on the friction pads is adjusted so that process torque is transmitted
• An overload causes the unit to slip
• Morse torque limiters are simple design, economical, easy adjustment, compact and dependable
• Bushing kits are available in a wide range of bore size and are easily installed

• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Morse_108763_Specification_Sheet.pdf
