Climax
M1C-30

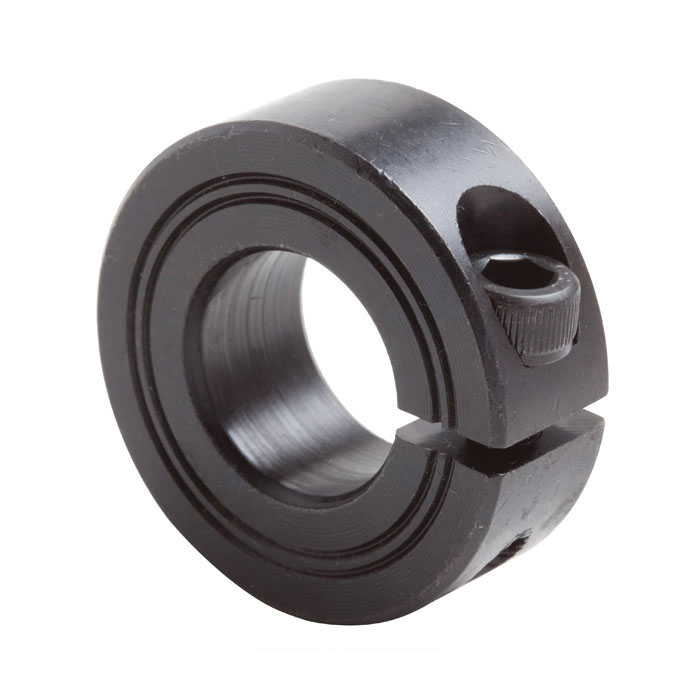

Climax M1C-30 Clamping Collar, 1-Piece Split Construction, 30 mm ID x 2-1/8 in OD x 15 mm W, Steel

  • Manufacturer: Climax Metal Products
  • Brand: Climax
  • BSC Item#: M1C30 CLIMAX
  • MPN: M1C-30
  • UPC: 044861610305
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

Black Oxide Steel Metric One-Piece Clamping Collar. Design fully engages the shaft without marring. Greater axial holding power than set screw collars. Effective on hard & soft shafts.

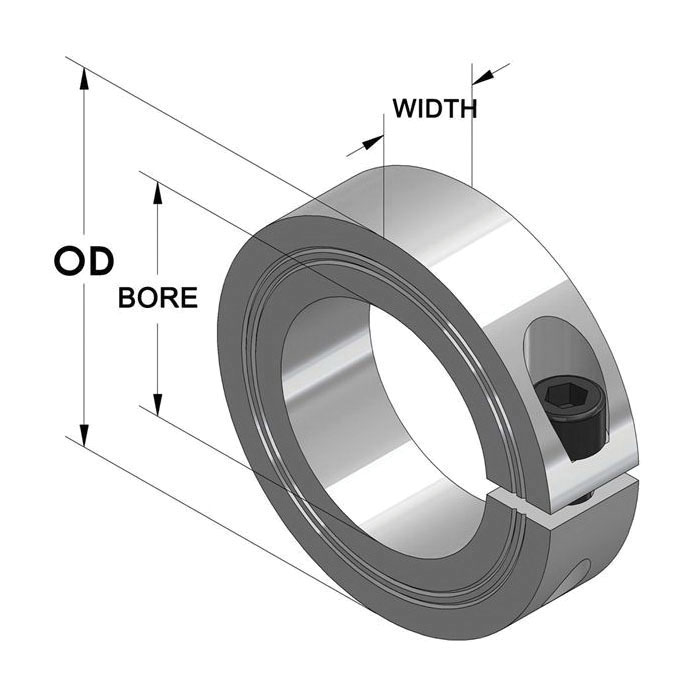

Climax Clamping Collar, Series: M1C, 1-Piece Split Construction, 30 mm ID, 2-1/8 in OD, 15 mm Width, Hex Socket Cap Screw Style, M6x16 Screw, Steel, Black Oxide

  • Design fully engages the shaft without marring
  • Greater axial holding power than setscrew collars
  • Effective on hard and soft shafts
  • No relief cut
  • Without recessed screw
  • Steel hex socket cap screw
  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_CC_193_193_Catalog.pdf
  • pdf Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_M1C_30_Line_Drawing.pdf
  • pdf Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_M1C_30_Specification_Sheet.pdf
Standard/Approvals      :      ASTM A108
Application      :      Conveyors, Solar Panel Farms, X-Ray Machines-Medical Indexing, Food Processing, Pressure Sprayers, Lawn Mowers, Truck Hoods, Washing Machines, Exercise Equipment, Hospital Beds, Wheelchairs and Other High Volume Applications
