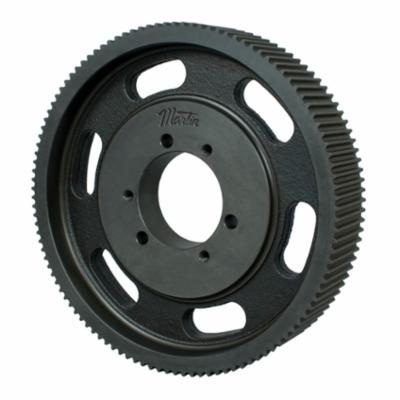

Martin P1928M50-E
Martin HTS® P1928M50-E Spoked Type D-3 High Torque Belt Drive Sprocket, 7/8 to 8-3/4 in QD® Bushed Bore, 14.383 in OD, 192 Grooves, 19.249 in Dia Pitch, 5-1/4 in W Face
- Manufacturer: Martin Sprocket & Gear
- Brand: Martin
- BSC Item#: P192-8M50E MART
- MPN: P1928M50-E
- UPC: 697950780320
- Min. Order Qty: 1
- Qty. Interval: 1 Availability: Call for Availability
- Sold As: 1/PK
-
Login to see price
Martin timing pulleys are manufactured to extremely close specifications and are stocked in minimum plain bore, taper bushed, QD bushed styles depending on size and pitch. Synchronous sprockets are non-slip toothed drives that require no lubrication. These sprockets have a wide speed range, are very efficient and make less noise than chain drives. Teeth on the belts are molded to conform with and engage the teeth on a mating sprocket.
Martin HTS® High Torque Belt Drive Sprocket, Spoked Type D-3, QD® Bushed Bore, 7/8 to 8-3/4 in Bore Dia, 14.383 in Outside Dia, 19.249 in, 192 Grooves, 8 mm Pitch, 5-1/4 in Face Width, E Bushing, 2-3/8 in Overall Length, Cast Iron
- Positive slip proof engagement
- Constant driven speeds
- No lubrication
- High tension eliminated
- High mechanical efficiency
- Economical operation
Catalog
| Application | : | Agitators, Mixers, Compressors, Conveyors, Blowers, Machine Tools, Pumps, Laundry, Paper, Textile, Woodworking and Brick and Clay Machinery Applications |
