Browning®
767469

Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric, or BOA concentric locking collar. The contact seal, with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction. Depending on your preference, these bearings are available in inch and metric bore with a wide variety of cast iron, stamped steel or rubber mount housings or specific industry solutions as illustrated on the pages to follow.

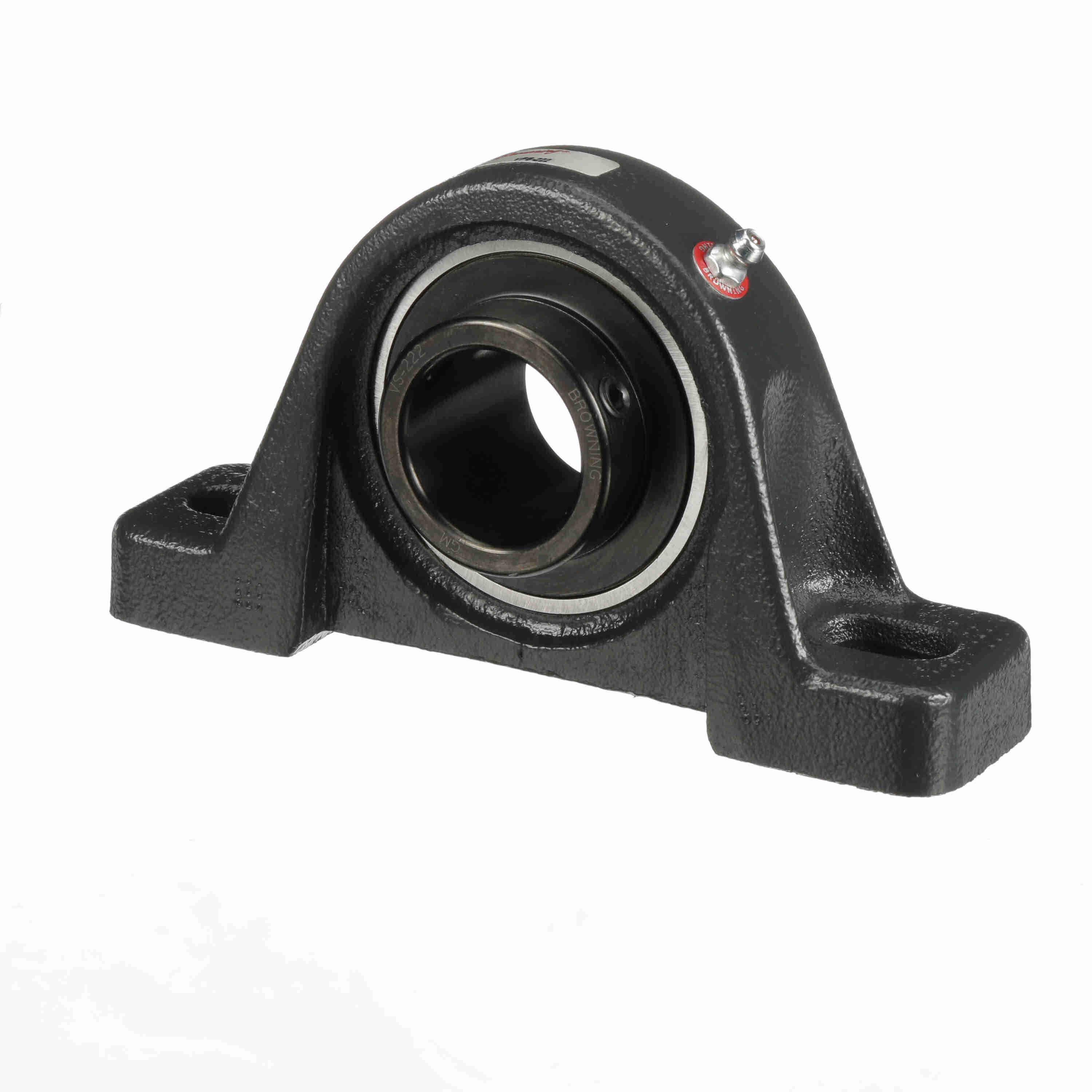

Browning® Pillow Block Ball Bearing, Normal Duty, Series: VPS 200, 1-3/8 in Bore, 4-5/8 to 5-3/8 in Bolt Center-to-Center Length, 1-7/8 in Base to Bore Centerline, 6-3/4 in Overall Length, 3-11/16 in Overall Height, Two-Bolt Base Mounting, Round Bore, 1-3/4 in Base Width, Set Screw Locking Device, Single Lip Contact with Flinger Seal, Non-Expansion (Fixed) Expansion, 5782 lb Dynamic/3493 lb Static Load, -20 to 200 deg F, 4000 rpm Maximum, Cast Iron, Gray Painted

• 120 deg spaced, balanced 3-point contact minimizes inner ring distortion vibration, reduces noise and improves reliability
• The rugged base design provides an excellent mounting foundation, this is integral to prevent sheet metal "buckling"
• Positive contact molded nitrile rubber contact seal with an auxiliary flinger element standard
• An anti-rotation rivet prevents outer ring creep or rotation, within the housing
• Spherical outer diameter bearing insert
• 52100 steel insert
• Alemite fitting lubrication
• Nylon retainer
• Powder coat epoxy cast iron housing_x005f Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews_x005f Single lip contact seal and flinger
