Browning®
1069210

External key provides positive drive with no torque on the cap screws. We offer high torque carrying capacity. Double split barrel improves true concentricity. The shaft is gripped with positive clamp fit.

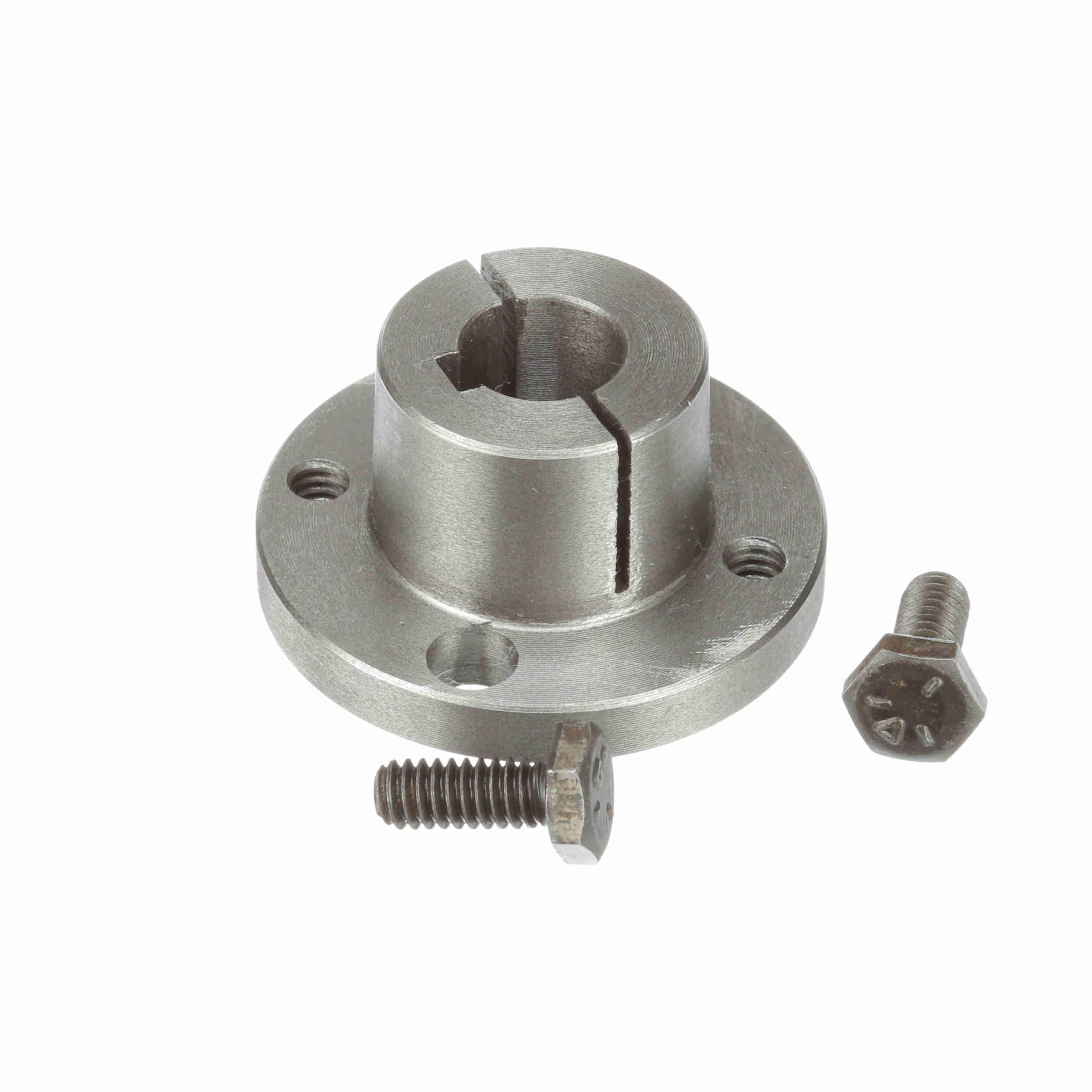

Browning® Split-Taper Bushing, Type G, 14 mm Bore, 1.133 in Dia Small End/1.172 in Dia Large End Barrel Diameter, 1.563 in Diameter Bolt Circle, 2 in Diameter Flange, 1/4 in Flange Thickness, 2 Bolt Holes, 1/4 x 5/8 in Screw, For Use With: Gearbelt® Multiple Groove Sheaves, 1 in Overall Length, Sintered Steel

• Highest torque carrying capacity
• Double split barrel assures true concentricity grips the shaft with positive clamp fit
• Combination Groove - All Browning B5V Sheaves permit the running of A, 4L, B, 5L and 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
• Broad horsepower coverage - The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
• Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
• New Casting design - The B5V castings were developed using CAD and Finite Elements Analysis to determine where to add and eliminate material
• 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
