Littelfuse®
SPF010

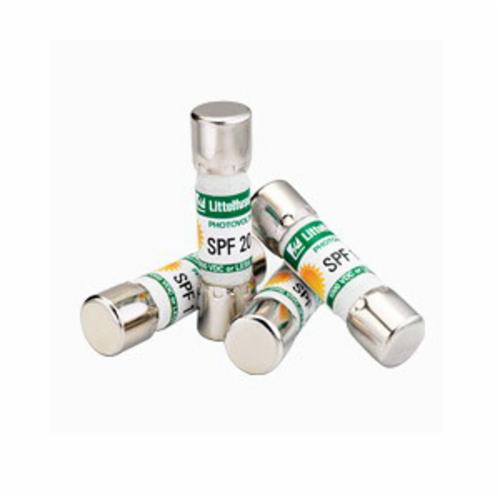

SPF solar protection fuse series has been specifically designed for the protection of photovoltaic (PV) systems. This family of midget style fuses (10 x 38 mm) can safely protect PV (photovoltaic) modules and conductors from reverse over current conditions. As PV systems have grown in size, so have the corresponding voltage requirements. This increase in system voltage has typically been intended to minimize power loss associated with long conductor runs. Standard circuit protection devices are not designed to completely protect photovoltaic panels. However, the SPF series is UL Listed to safely interrupt faulted circuits up to this demanding voltage level. Littelfuse® offers various ampere ratings to match specific requirements in a variety of applications.

Littelfuse® POWR-GARD® Solar Fuse, Fast Acting Full Range, Series: SPF, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 10 A, 1000 VDC, 20 kA Interrupt, 12 s Response, Ferrule Terminal, PCB Mount, Cylindrical Body, Dual Element, Melamine, 13/32 in Dia x 1-1/2 in L Body Size

• 5AG size fuse
• 5 sec minimum delay for fuses rated at 3 A or less and 12 sec for fuses rated more than 3 A at 200% fuse rating
• Nickel plated copper alloy caps
• Time constant less than 2 ms

• Specification S... https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_5e8b3c8144cb1360e9fe2ecb7e84d8739b00f0fa7016bd38dd7e11fc97769757.pdf
