Climax
C193M-22

Single-taper, self-centering design with mounting flange for use in through-bored components. Mounted component remains fixed axially during installation. View Catalog Page

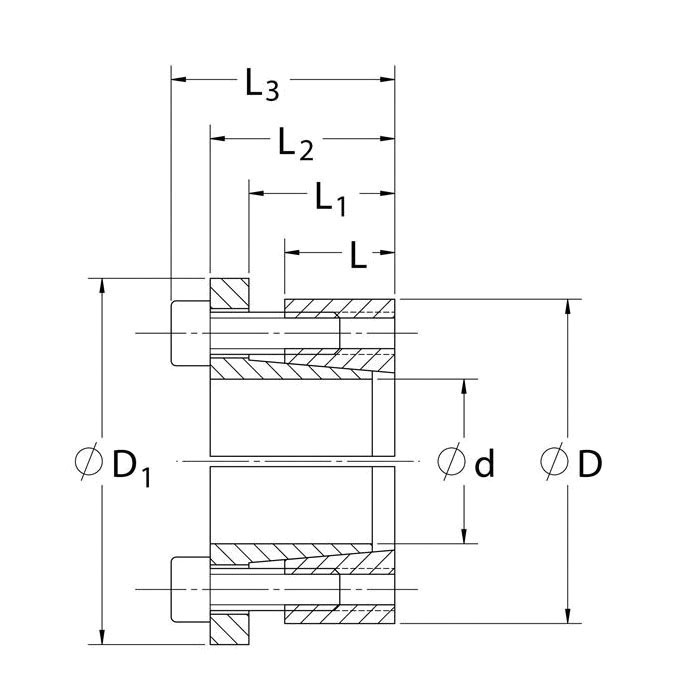

Climax Keyless Locking Assembly, Series: C193, 22 mm Bore Dia, 1-9/16 in Outside Dia, 2.219 in Hub Dia, 2285 in-lb Transmissible Torque, 5277 lbf Transmissible Thrust, 27347 psi Shaft Contact Pressure, 15159 psi Hub Contact, M5x18 Screw, 1.181 in Overall Length, 0 to 400 deg F, Steel

• Single-taper, self-centering design with mounting flange for use in through-bored components
• Mounted component remains fixed axially during installation
• Locking assemblies install as bushings between the shaft and the component bore, creating a high pressure mechanical interference fit
• As the annular high-strength screws are tightened, internal tapers simultaneously apply radial force on the shaft and the component bore
• No key means infinite radial and axial positioning for precise alignment and timing
• Self-locking tapers on most designs mean the connection will not loosen under dynamic loading, even high shock, reversing or vibration

• Instruction/Ins... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_C193M_12_Installation_Manual.pdf
• Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_C193M_22_Line_Drawing.pdf
• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_C193M_22_Specification_Sheet.pdf
• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_C405E_212_Catalog.pdf
• Technical Bulle... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Climax_C405E_212_Technical_Bulletin.pdf
• VIDEO LINK https://youtu.be/LuLczlLpHmc
