Martin
2060A24

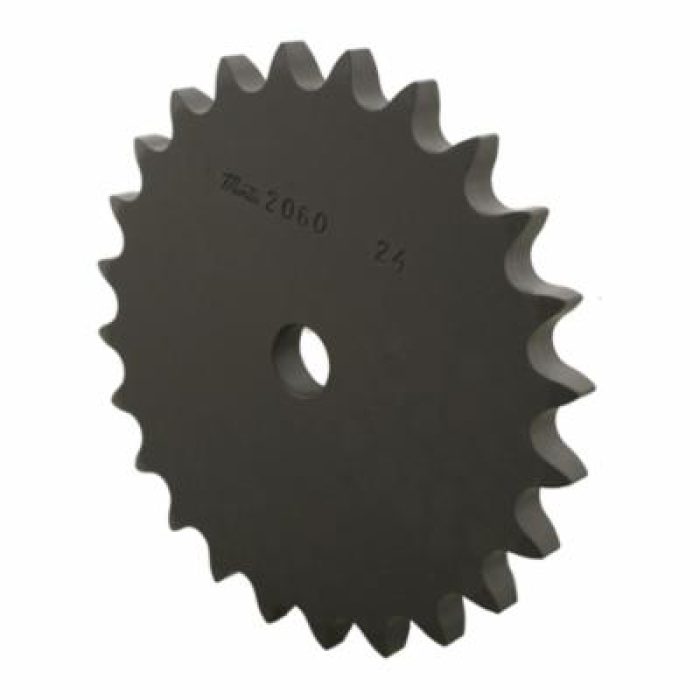

Martin 2060A24 Conveyor Solid Stock Bore Type A Double Pitch Roller Chain Sprocket, 0.719 in Dia Bore, 6.15 in OD, 2060 Chain, 24 Teeth, 1-1/2 in Pitch, Steel

  • Manufacturer: Martin Sprocket & Gear
  • Brand: Martin
  • BSC Item#: 2060A24
  • MPN: 2060A24
  • UPC: 697950045399
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: Call for Availability

Double pitch sprockets have rollers of the same diameters and widths as American Standard roller chains of one half the conveyor chain pitch. Engaged by every other tooth, double duty sprockets have two teeth per chain pitch. During each revolution only half the teeth function effectively. Sprockets with odd numbers of teeth will allow any given tooth to engage only on every other revolution, automatically increasing sprocket life. Double duty sprockets with even number of teeth may be manually advanced one tooth periodically to increase sprocket life.

Martin Double Pitch Roller Chain Sprocket, Solid Stock Bore Type A, Series: Conveyor, 0.719 in Bore Dia, 6.15 in Outside Dia, 2060 Chain, 24 Teeth, 1-1/2 in Pitch, 5.796 in, 4 in Hub Dia, 0.459 in Length Through Bore, Steel

Type      :      Solid Stock Bore Type A
Series      :      Conveyor
Bore Diameter      :      0.719 in
Outside Diameter      :      6.15 in
Chain Size      :      2060
Number of Teeth      :      24
Pitch      :      1-1/2 in
Pitch Diameter      :      5.796 in
Hub Diameter      :      4 in
Length Through Bore      :      0.459 in
Material      :      Steel
