LEESON®

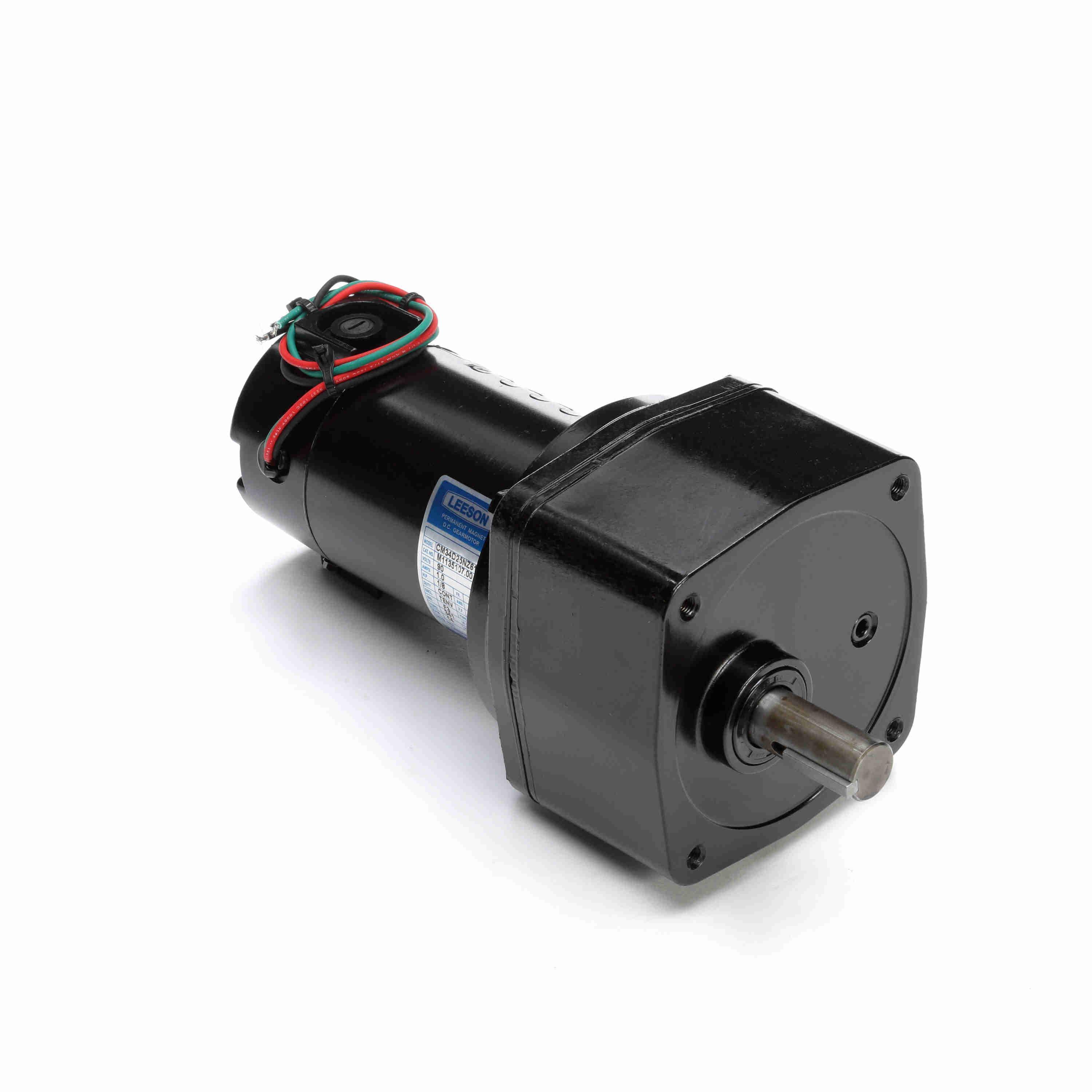

M1135107.00

LEESON® Gear Motor, Parallel Shaft Continuous Duty, Series: PE350, 90 VDC, 1 A Full Load Amperage, 0.13 hp, 3, 14 rpm Maximum, 3/4 in Shaft Dia, 1.62 in Shaft Length, Reversible, 341 in-lb, 180:1 Gear Ratio, Permanent Split Capacitor Motor, Ball Bearing, 465 lb Overhung Load, Special Mount, 40 deg C Ambient, Class F Insulation, Totally Enclosed Nonvented (TENV), Die Cast Aluminum Housing, 11.31 in L x 6 in W x 6.75 in H

• Precision machined gearing and hardened for maximum load capability
• Oversized output bearings for greater overhung load capacity and long life
• High carbon alloy output shaft provides maximum strength and rigidity
• All needle bearing journals are precision ground after heat treating to provide maximum fit and finish
• Heavy duty industrial oil seals keep lubricant in and dirt out
• Gears and bearings are splash lubricated with permanent, heavy duty gear oil
• Sub-fractional horsepower DC motors
• Constant HP range at 1.5x base speed 284T - 445T frame
• No mounting available for encoder devices
• Normally closed thermostats
• Precision balanced rotors
• Performance matched for continuous duty service

• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/LEESON_M1135107_00_Specification_Sheet.pdf
