Browning®
1033364

Browning® offers an extensive multi groove sheave offering. This includes Browning® SPLIT TAPER® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time! Our exclusive B5V® sheaves have a patented design that offers 5 V hp in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.

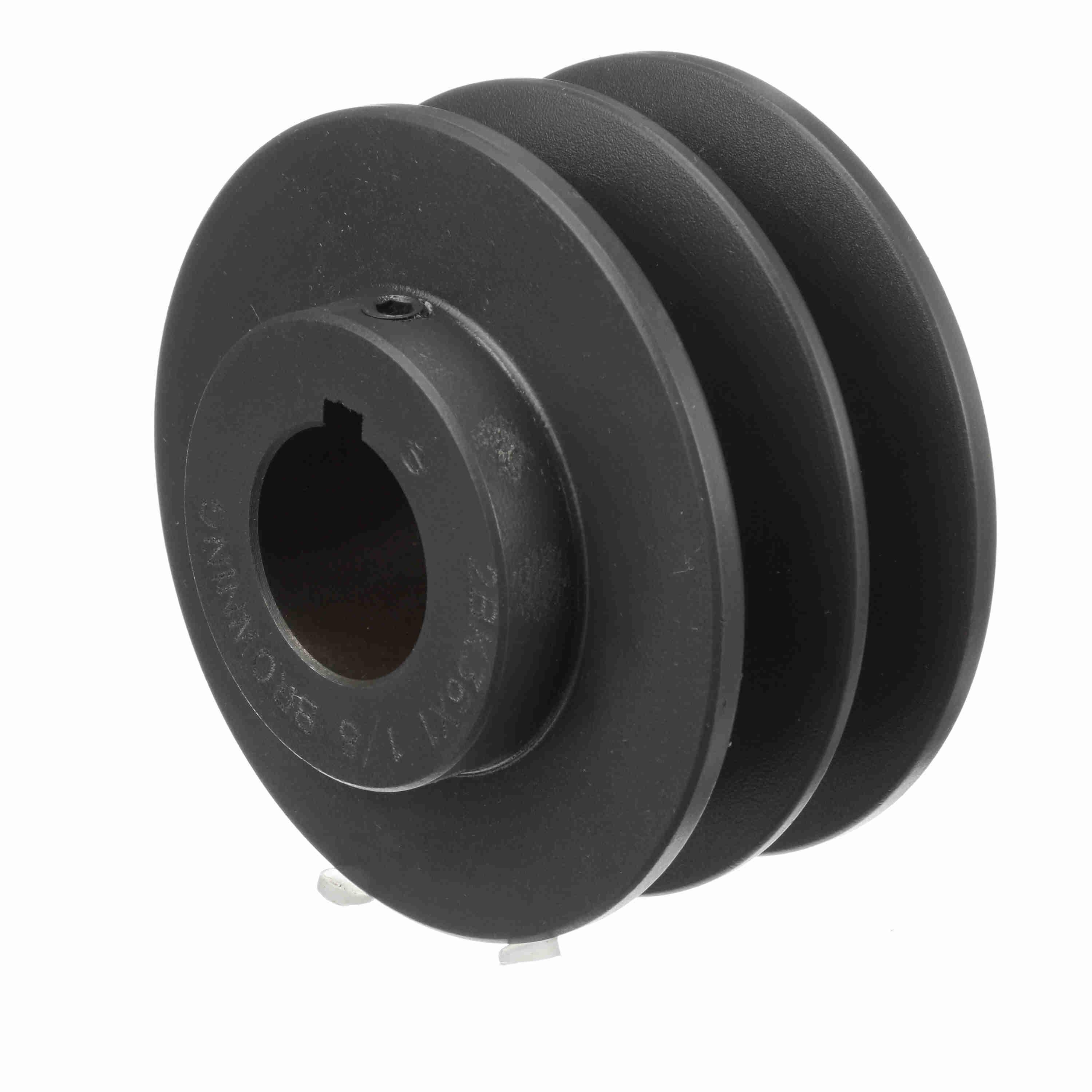

Browning® FHP Sheave, Type 1, Series: BK Series, Finished Bore, 1-1/8 in Bore, 3-3/4 in OD, 3.2 in (A)/3.7 in (B) Pitch Diameter, 2 Grooves, 1-3/4 in Face Width, 15/32 in Hub Projection, 2-7/32 in Overall Length, For Use With: AB Cross Section V-Belts, Cast Iron

• Bushed products provide more flexibility of inventory, by just changing out the bore size of the bushing
• Sheaves are balanced and accurately machined to minimize vibration
• Largest selection of products of any sheave manufacturer assurance to have the best product for specific application and most economical drive design
• Paint finish that protects product from rushing in high moisture environments
• Constant Speed - No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
• Broad depth of product to choose from - Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement
• Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper and QD Bushing styles, as well as, finished and minimum plain bore
• Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
• Combination Groove - All Browning BK Sheaves permit the running of A, 4L, B and 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_2BK40HCLEARPK_Catalog.pdf
