Micron®
42-114345-C188

Micron® UltraTRUE™ planetary gearheads combine the attributes of helical crowned gearings with TRUE Planetary™ orientation to create the smoothest, quietest gearheads on the market today. The internal gear is cut directly into the stainless steel housing to increase torque capacity and avoid slippage. The helical cut of the gears provides higher torque capacity, precision and stiffness when compared to straight cut gears. In addition, Micron® TRUE Planetary™ gearing technology allows for highly efficient and precise torque multiplication for servo motor applications. Thomson® Micron® carries the UltraTRUE™ in many ratios stocked and available for immediate delivery.

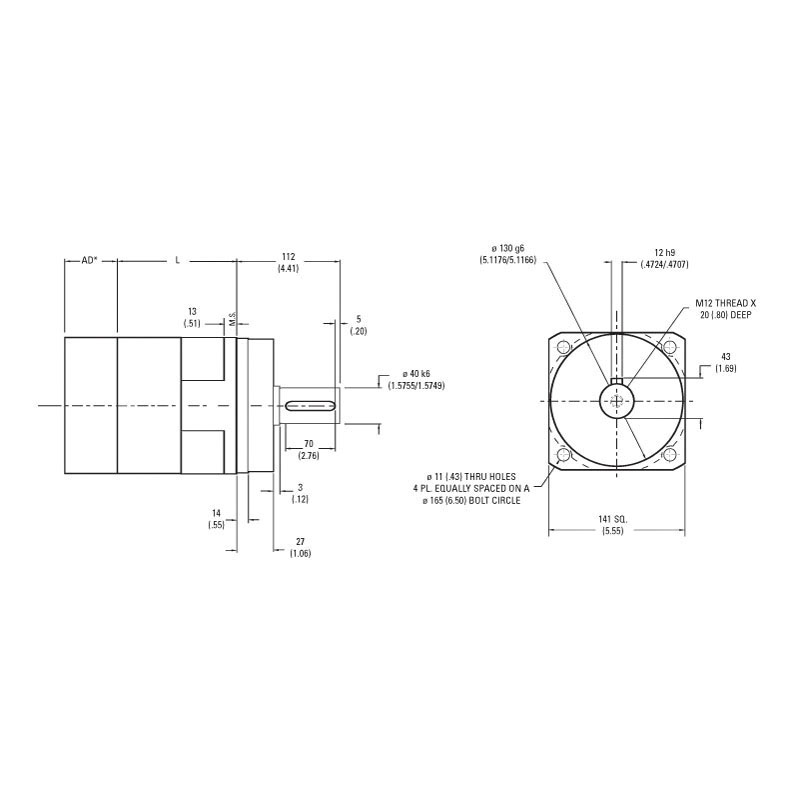

Micron® TRUE Planetary™ Helical Crowned Gearhead, Cyclical-Duty, Series: UltraTRUE™, 20:1 Gear Ratio, RediMount™ Motor Mounting System Input, Single Shaft Output, 40 mm k6 Output, 250 rpm Output Maximum Speed, 5000 rpm Input Maximum Speed, 575 N-m, 5 arcmin Backlash, 70 mm L x 12 mm h9 W x 43 mm H Keyway, 90 % Efficiency, Grease Lubrication, In-Line Vertical Mount, Anodized Aluminum, 141 mm W x 141 mm H

• RediMount™ system provides error-free motor installation
• Helical crowned HRC 55-60 steel gears provide higher torque capacity and smoother operation
• Tapered roller bearings provide high axial and radial load carrying capacity
• Sealed deep groove ball bearings provide high radial load carrying capability
• Single piece output integrated output housing and internal gear
• Anodized aluminum housing reduces weight and prevents corrosion
• Stainless steel output shaft
• Size 14 frame
• RM142-88S special RediMount™ kit
