Browning® 3789468 D40BTL84
Send NoImagePrint
  1. pin-int

Browning®
3789468

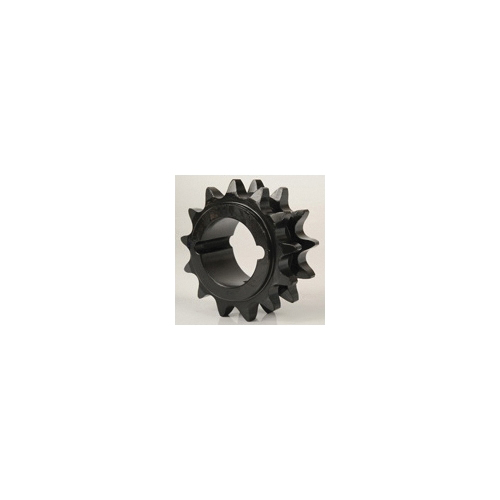

Browning® 3789468 Double Strand Type 2 Roller Chain Sprocket, 1/2 to 2-1/2 in Dia Bore, 13.663 in OD, 40 Chain, 84 Teeth, 1/2 in Pitch, Steel

  • Manufacturer: Regal Rexnord
  • Brand: Browning®
  • BSC Item#: D40BTL84
  • MPN: 3789468
  • UPC: 662289184033
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.

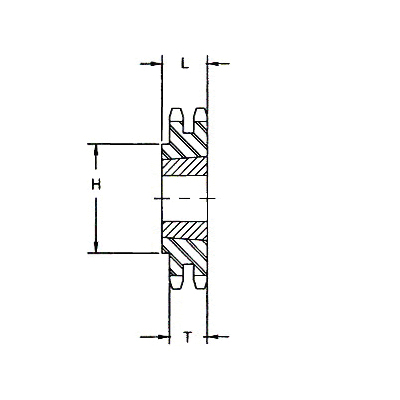

Browning® Roller Chain Sprocket, Double Strand Type 2, 1/2 to 2-1/2 in Bore, 13.663 in OD, 40 Chain, 84 Teeth, 13.372 in Pitch Diameter, 4.266 in Diameter Hub, 1-3/4 in Length Through Bore, Steel

  • This product has the Browning® exclusive twice the life guarantee
  • Compact design
  • Hardened teeth at no extra cost, drives sizes up to 30 teeth on 40 through 160 chain
  • Flush fit, less space on shaft and no protruding flange
  • Setscrew or cap screw acts as external key
  • For use with 1/2 in pitch ANSI chain
  • pdf Warranty Inform... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_A175382_Warranty.pdf
  • pdf Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_D40TB19_Specification_Sheet.pdf
Application      :      Aggregate, Cement, Agriculture, Forestry, Minerals, Mining, Pulp and Paper Industries
