Browning® 1139716 50B49-1
Send NoImagePrint
  1. pin-int

Browning®
1139716

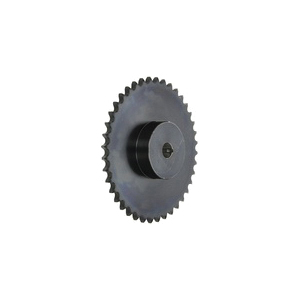

Browning® 1139716 Single Strand Finished Bore Type 1 Roller Chain Sprocket With Keyway, 1 in Dia Bore, 10.11 in OD, #50 Chain, 49 Teeth, 5/8 in Pitch, Steel

  • Manufacturer: Regal Rexnord
  • Brand: Browning®
  • BSC Item#: 50B49-1
  • MPN: 1139716
  • UPC: 662289339310
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

Browning® finished bore sprockets are offered in single strands. Offerings include 35 to 100 pitch range. Finished bore sprockets are available from 3/8 to 2-7/16 in. Hardened teeth are available up to 30 teeth.

Browning® Roller Chain Sprocket, Single Strand Finished Bore Type 1, 1 in Bore, 10.11 in OD, #50 Chain, 49 Teeth, 9.755 in Pitch Diameter, 2.016 in Diameter Hub, 1-1/4 in Length Through Bore, Steel

  • Furnished with standard keyway on centerline of tooth and hollow head setscrew over keyway
  • In-stock hardened sprockets are warranted to last at least twice as long as the standard (unhardened) mild steel sprockets they replace
  • For use with 5/8 in pitch ANSI chain
  • pdf Warranty Inform... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_A175382_Warranty.pdf
  • pdf Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_H509X58_Specification_Sheet.pdf
Application      :      Aggregate, Cement, Agriculture, Forestry, Minerals, Mining, Pulp and Paper Industries
