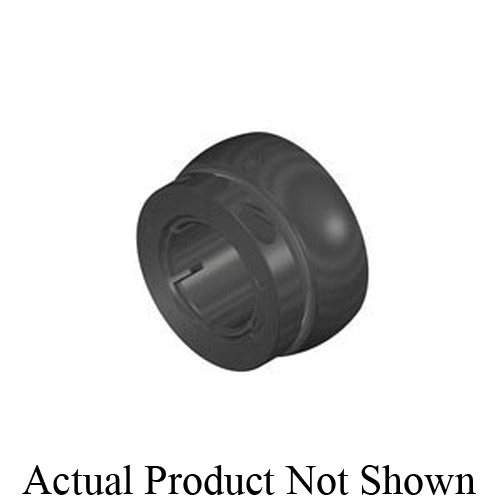

Sealmaster®
711029

Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.

Sealmaster® Ball Bearing Insert, Non-Expansion Standard-Duty Straight Bore, 1-1/4 in Bore, 2.4409 in OD, 1-9/16 in Width, Double Seal Closure, 4381 lb Dynamic/2567 lb Static Load, Steel Bearing, Nitrile Rubber Seal, Brass Cage, 5450 rpm Maximum, -20 to 220 deg F, Black Oxide Coated

• Wide outer ring
• Lock pin and dimple system
• Single lip contact seal consists of a nitrile rubber washer in metal shroud to shield the lip from large contaminants
• Skwezloc® is a concentric locking collar clamp design that results in near perfect concentricity of the shaft to the bearing bore and maintains near perfect ball path roundness
• Zone hardened inner race
• Land riding retainer
• Lithium complex NLGI #2 grease with an EP additive

• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_2012T_Specification_Sheet.pdf
• Instruction/Ins... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_RB10_Manual.pdf
