Martin P2814M85-MPB P28-14M85MPB MART
Send NoImagePrint
  1. pin-int

Martin
P2814M85-MPB

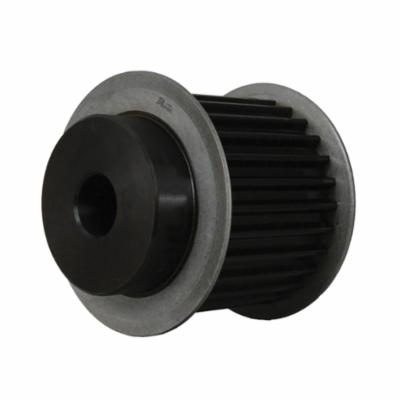

Martin HTS® P2814M85-MPB Solid Type DF-1 High Torque Belt Drive Sprocket, 1.25 to 2.688 in Minimum Plain/Reborable Bore, 4.802 in OD, 28 Grooves, 4.912 in Dia Pitch, 4 in W Face

  • Manufacturer: Martin Sprocket & Gear
  • Brand: Martin
  • BSC Item#: P28-14M85MPB MART
  • MPN: P2814M85-MPB
  • UPC: 697950780627
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

Martin timing pulleys are manufactured to extremely close specifications and are stocked in minimum plain bore, taper bushed, QD bushed styles depending on size and pitch. Synchronous sprockets are non-slip toothed drives that require no lubrication. These sprockets have a wide speed range, are very efficient and make less noise than chain drives. Teeth on the belts are molded to conform with and engage the teeth on a mating sprocket.

Martin HTS® High Torque Belt Drive Sprocket, Solid Type DF-1, Minimum Plain/Reborable Bore, 1.25 to 2.688 in Bore Dia, 4.802 in Outside Dia, 4.912 in, 28 Grooves, 14 mm Pitch, 4 in Face Width, 5.562 in Flange Dia, 3-11/16 in Hub Dia, 1 in Hub Projection, 4 in Overall Length, Steel

  • Positive slip proof engagement
  • Constant driven speeds
  • No lubrication
  • High tension eliminated
  • High mechanical efficiency
  • Economical operation
  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Martin_P228M20-MPB_Catalog.pdf
Application      :      Agitators, Mixers, Compressors, Conveyors, Blowers, Machine Tools, Pumps, Laundry, Paper, Textile, Woodworking and Brick and Clay Machinery Applications
