Martin TR10X4 TR10X4 MART
Send NoImagePrint
  1. pin-int

Martin
TR10X4

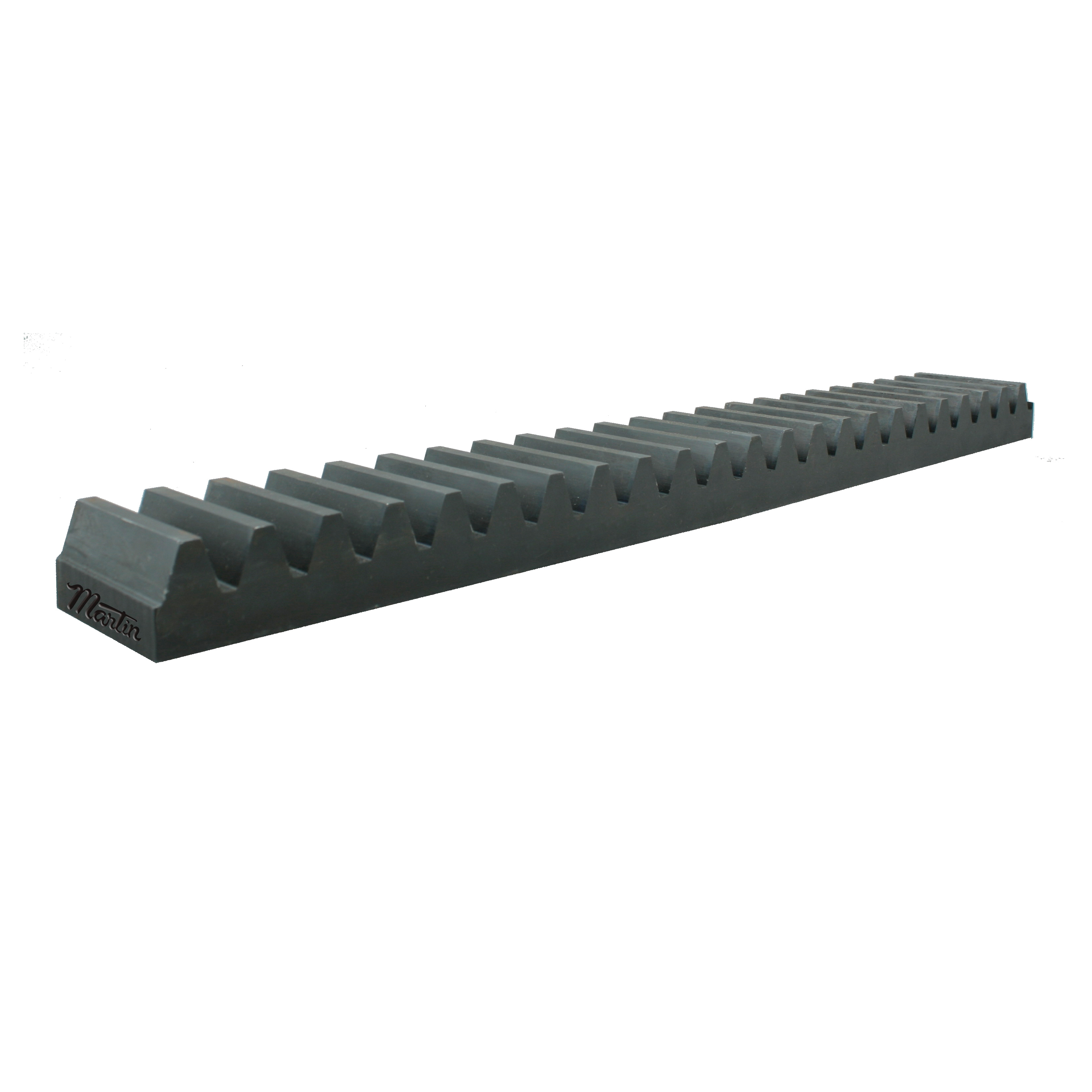

Martin TR10X4 Standard Face Gear Rack, 10 Diametral Pitch, 20 deg Pressure Angle, 1 in W Face, 48 in OAL, 0.9 in, Steel

  • Manufacturer: Martin Sprocket & Gear
  • Brand: Martin
  • BSC Item#: TR10X4 MART
  • MPN: TR10X4
  • UPC: 697950059457
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

Martin rack is made from low carbon cold drawn steel. It is available in 14-1/2 deg and 20 deg pressure angle in 2, 4, and 6 foot lengths. Allowance is made for cutting and machining. Pinions to run with the rack may be selected from the spur gear section of the catalog. Special rack can be supplied in other materials, sizes, and pitches. Each Martin facility can mill and match rack for longer continuous runs.

Martin Gear Rack, Standard Face, 1 in Face Width, 10 Diametral Pitch, 0.9 in Pitch Line to Back, 48 in Overall Length, 1 in Overall Thickness, 20 deg Pressure Angle, Steel

  • To be used with spur gear pinions
  • Precise machining and processes ensure consistent finish and high quality
  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Martin_R16X4_Catalog.pdf
Standard/Approvals      :      AGMA 6-8
