Browning®
1002807

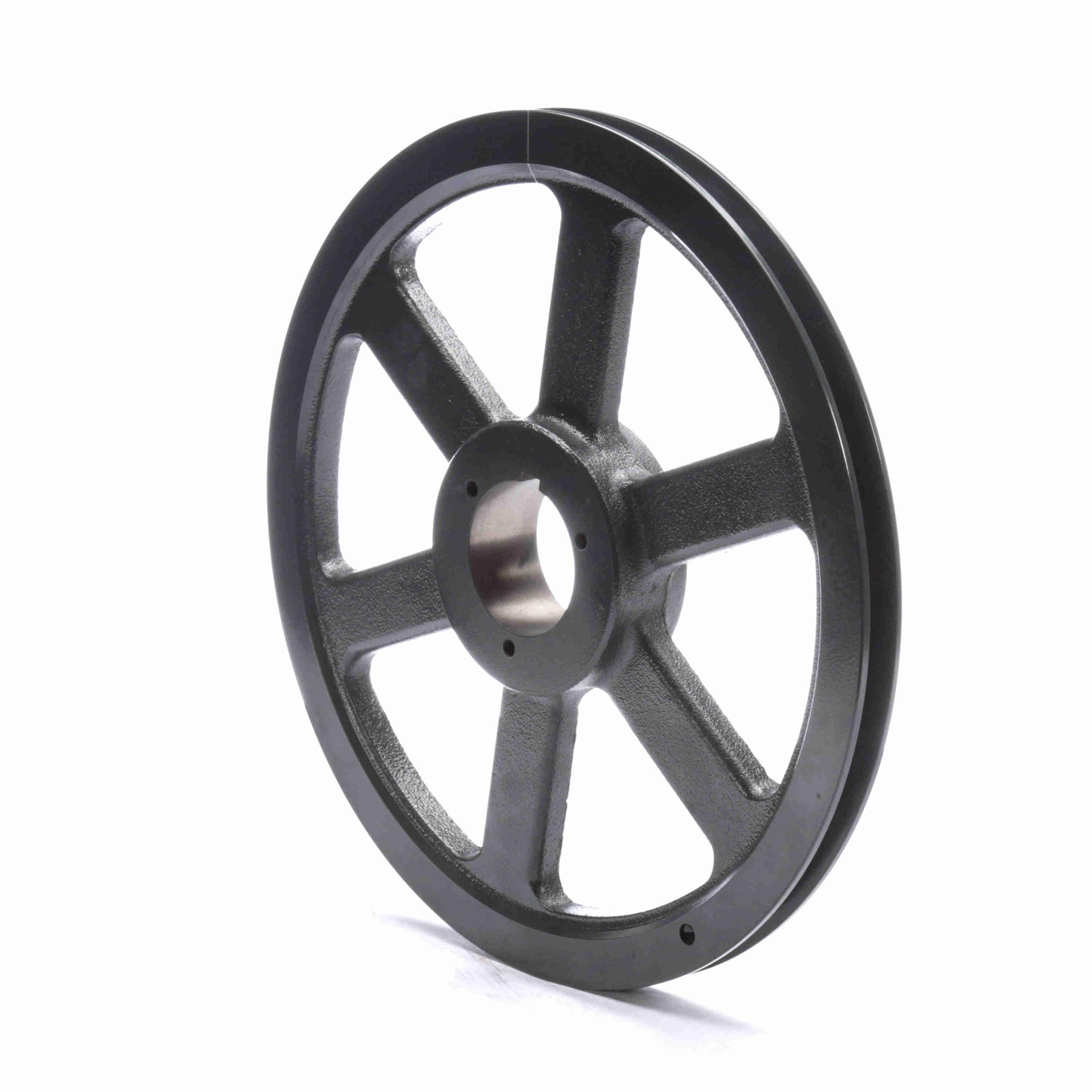

Browning® Classical Gripbelt® Single Groove Sheave, Arm Type 16, Series: TB Series, Split Taper Bore, 3/4 to 2-11/16 in Bore, 15-3/4 in OD, 15.2 in (A)/15.7 in (B) Pitch Diameter, 1 in Face Width, 4-1/8 in Diameter Hub, 1-7/32 in Hub Projection, Q1 Bushing, 2-53/64 in Overall Length, For Use With: AB Cross Section V-Belts, Cast Iron

• Precision balanced
• Easy-on/easy-off
• External key provides positive drive with no torque on the cap screws
• Highest torque carrying capacity in the Browning® bushing product line
• Double split barrel assures true concentricity
• Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
• Combination Groove - All Browning B Sheaves permit the running of A and B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
• Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible

• Instruction/Ins... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_1004910_Installation_Manual.pdf
