McGill®
4301300000

TRAKROL® bearings feature black oxide treated bearing steel. They utilize either a precision ball or tapered roller bearing insert for longer operating life under combination radial and thrust loads. The capacity for combination loads allows the TRAKROL® bearing to be available in plain (cylindrical), V-groove and flanged outside diameter in both stud and yoke styles. Small sizes less than 3 in outside diameter or point diameter use sealed ball bearing inserts. They also use a NYLAPLATE® seal for additional protection. Stud type configurations utilize a metal end plug seal on the roller face providing a long lasting seal. Both bearing types provide a large internal grease reservoir along with special sealing. This makes TRAKROL® bearings an excellent choice where reduced maintenance is required.

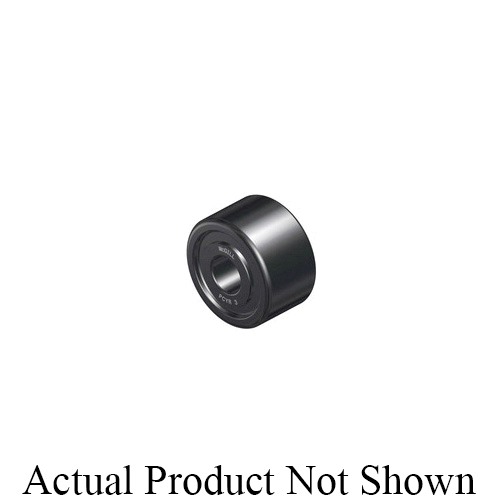

McGill® TRAKROL® Unmounted Cam Yoke Roller Bearing, Plain, Series: PCYR, 1 in Bore Dia, 3 in Roller Dia, 1-3/4 in Roller Width, 1.812 in Overall Width, 14300 lb Dynamic/20000 lb Static, Sealed Closure, 950 rpm Maximum, -20 to 250 deg F, Chrome Steel Roller, Black Oxide

• Custom design and lubricant
• A heavy sectioned outer race design to help withstand shock loading of cam follower operation
• Black oxide finish on all external surfaces helps inhibit corrosion
• The threads are manufactured to a class 2 tolerance
• Bearings are supplied pre-lubricated and maintenance free
• Tapered roller bearing insert

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/McGill_4145510000_Catalog.pdf
• Instruction/Ins... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/McGill_4145510000_Manual.pdf
