Boston Gear®
SH142-1P

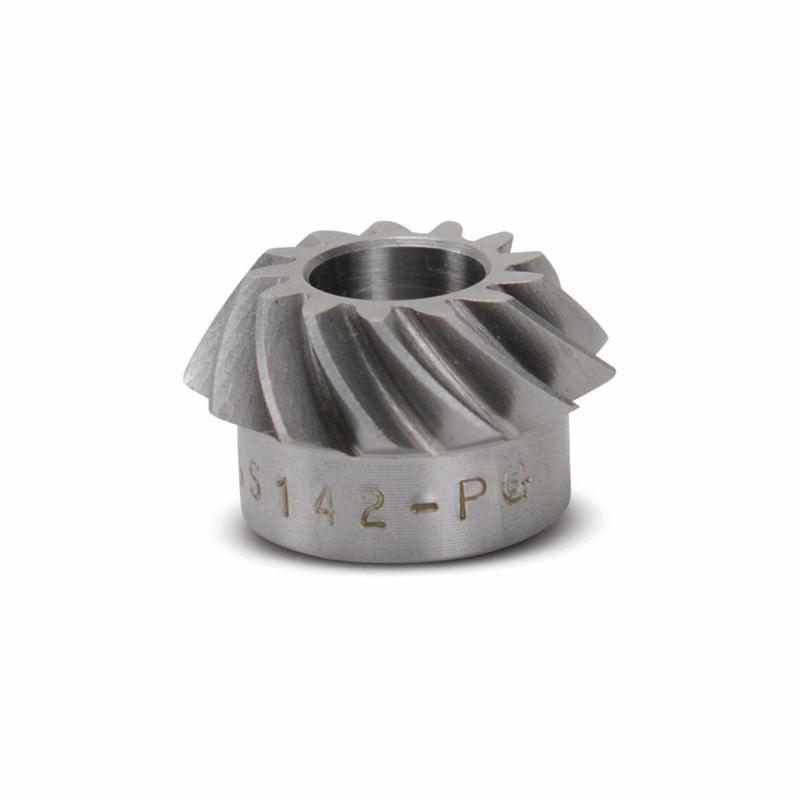

Boston Gear® SH142-1P Spiral Bevel Gear Without Setscrew, 14 Diametral Pitch, Left Hand Rotation, 20 deg Pressure Angle, 16 Teeth, 1.14 in Pitch Dia, 0.38 in Face, 1/2 in Bore Dia, Steel

  • Manufacturer: Regal Rexnord
  • Brand: Boston Gear®
  • BSC Item#: SH142-1P BGW
  • MPN: SH142-1P
  • UPC: 781711119082
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

Boston bevel gears are designed for the transmission of motion and power between two intersecting shafts positioned at a right angle. Bevel gears are similar to miter gears except bevel gears are used for 1.5:1 to 6:1 ratios. Straight tooth bevel gears are cut with a generated "coniflex" tooth form providing increased life and quieter operating conditions. Spiral tooth bevel gears are better suited for higher speeds and high torque applications.

Boston Gear® Spiral Bevel Gear Without Setscrew, 1/2 in Bore Dia, 1.31 in Outside Dia, 2:1 Gear Ratio, 16 Teeth, 14 Diametral Pitch, 1.14 in, 0.38 in Face Width, Left Hand Direction of Rotation, 1.62 in Hub Dia, 0.45 in Hub Projection, 20 deg Pressure Angle, 35 deg Spiral Angle, 1/8 x 1/16 in Keyway, Steel

  • Hardened teeth offer versatility
  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Boston_Gear_1118AF12_Catalog.pdf
  • pdf Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Boston_Gear_G478YG_Specification_Sheet.pdf
Standard/Approvals      :      PROP65: This product contains lead, known to the State of California to cause cancer and birth defects or other reproductive harm.
