  1. pin-int

DICHTOMATIK
19628339TGN-PL

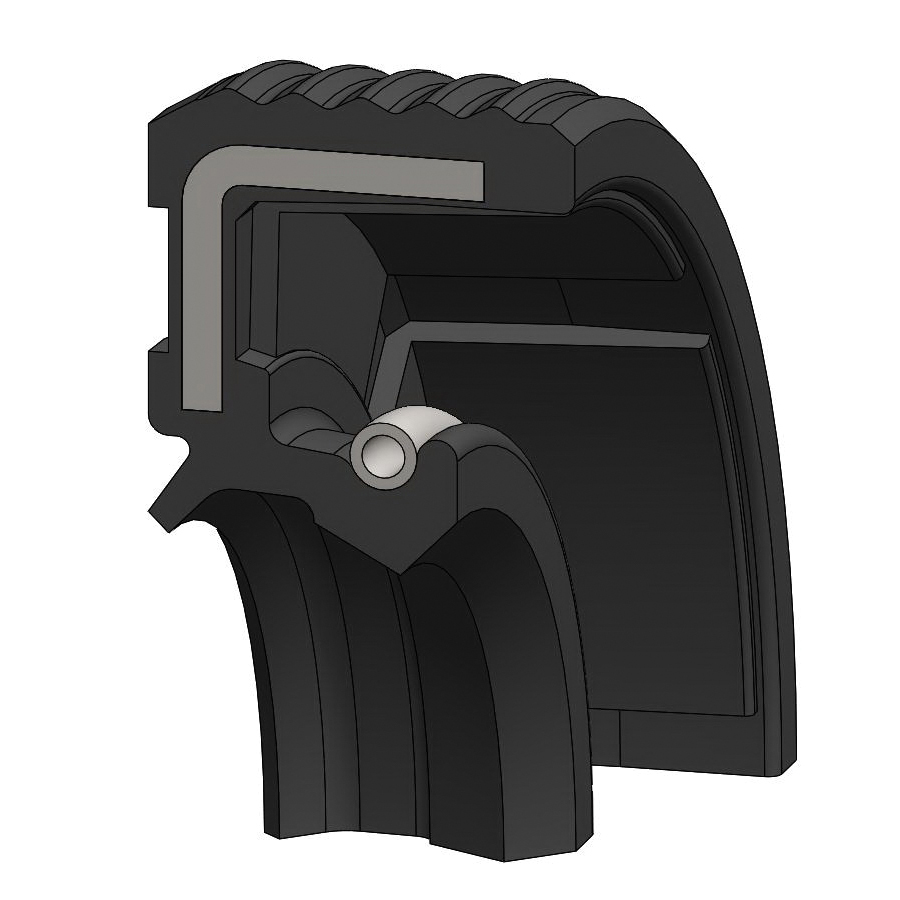

Dichtomatik 19628339TGN-PL TGN-PL Oil Seal, 1.969 in ID x 2.835 in OD x 0.393 in W, Nitrile Lip, 70 Durometer, Import

  • Manufacturer: Freudenberg Sealing Technologies
  • Brand: DICHTOMATIK
  • BSC Item#: 19628339TGN-PL TCOM
  • MPN: 19628339TGN-PL
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: Call for Availability

Our comprehensive line of oil seals or shaft seals cover a wide variety of applications including axles, engines, trailers and high-pressure environments. Generally oil seals are used to seal around a rotating shaft and provide protection from dirt intrusion while retaining an oil-based lubricant within the shaft.

Dichtomatik Oil Seal, TGN-PL, 1.969 in Inside Dia, 2.835 in Outside Dia, 70 Durometer, 0.393 in Width, -40 to 225 deg F, Nitrile Lip, Import

  • Low pressure dual lip with garter spring with protection from contaminates
  • Corrugated OD for applications where the housing material is subject to large thermal expansion or press fitting into a housing where installation is usually difficult
  • Pressure rating 90 psi
  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/TCM_162446TAHY_Catalog.pdf
Standard/Approvals      :      ISO 9001 Certified
Application      :      For low friction, high speed and higher pressure applications
