Brewer Universal Drive Tensioner
SO6

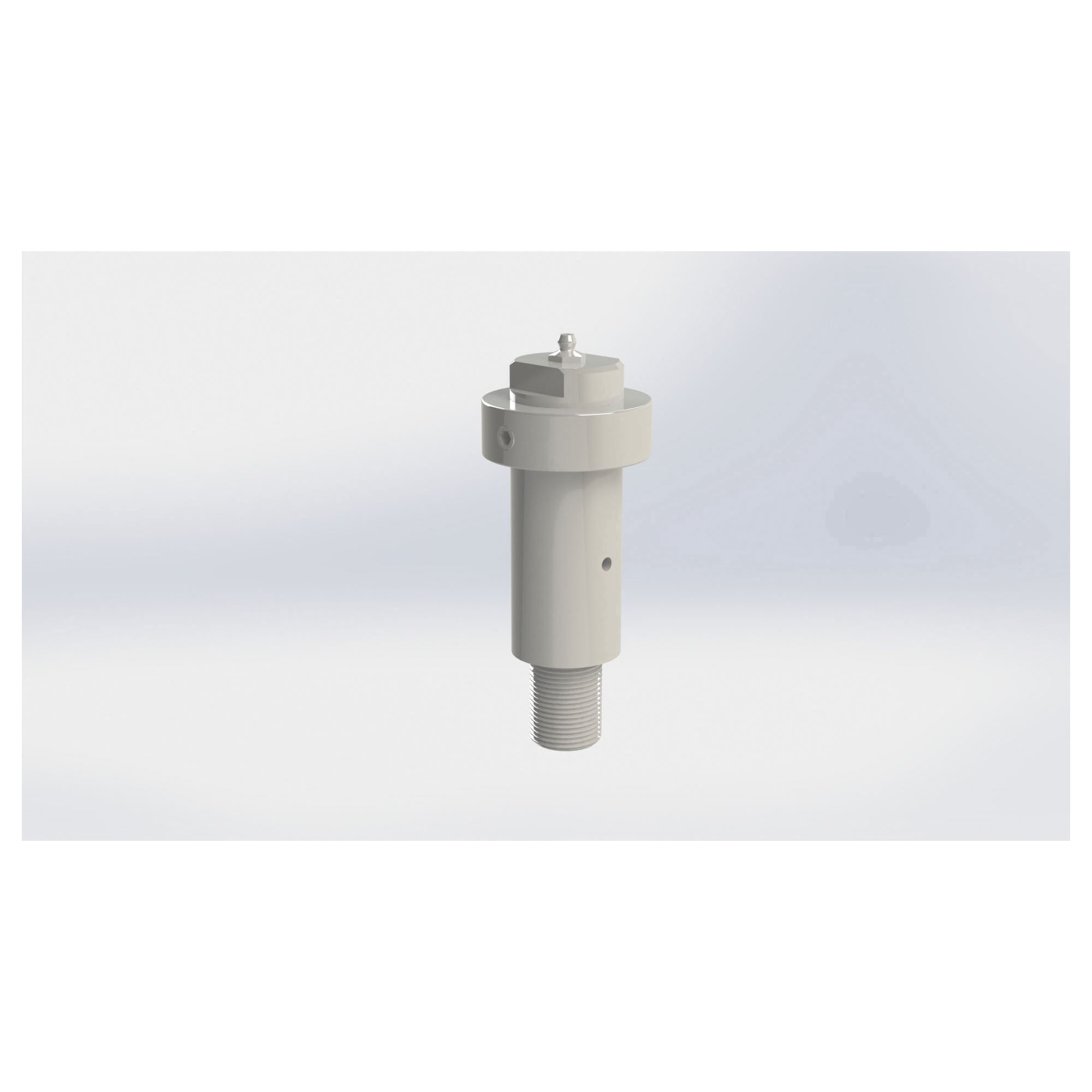

Brewer Universal Drive Tensioner SO6 Idler Shaft, 1-1/2 in Dia x 6 in L Shaft, 7.662 in OAL

  • Manufacturer: Brewer Machine and Gear
  • Brand: Brewer Universal Drive Tensioner
  • BSC Item#: SO6 BREW
  • MPN: SO6
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

Brewer idler shafts are hardened and ground for maximum idler life. To ensure maximum rigidity, they are shouldered and threaded into units and locked with a setscrew.

Brewer Universal Drive Tensioner Idler Shaft, Series: SO Series, 6 in Shaft Length, 1-1/2 in Shaft Diameter, 7.662 in Overall Length, 1-14 UNF Thread, 1-5/16 in Thread Length, For Use With: Model SL S Series Base Mount Drive Tensioners, Model AL A Series Shaft Mount Drive Tensioners, Model HL H Series Screw Adjustment Drive Tensioners, Model LL L Series Slide Adjustment Drive Tensioners, Model GL G Series Flange Mount Drive Tensioners, Model RL R Series Angle Mount Drive Tensioners, Steel
