Sealmaster®
701073

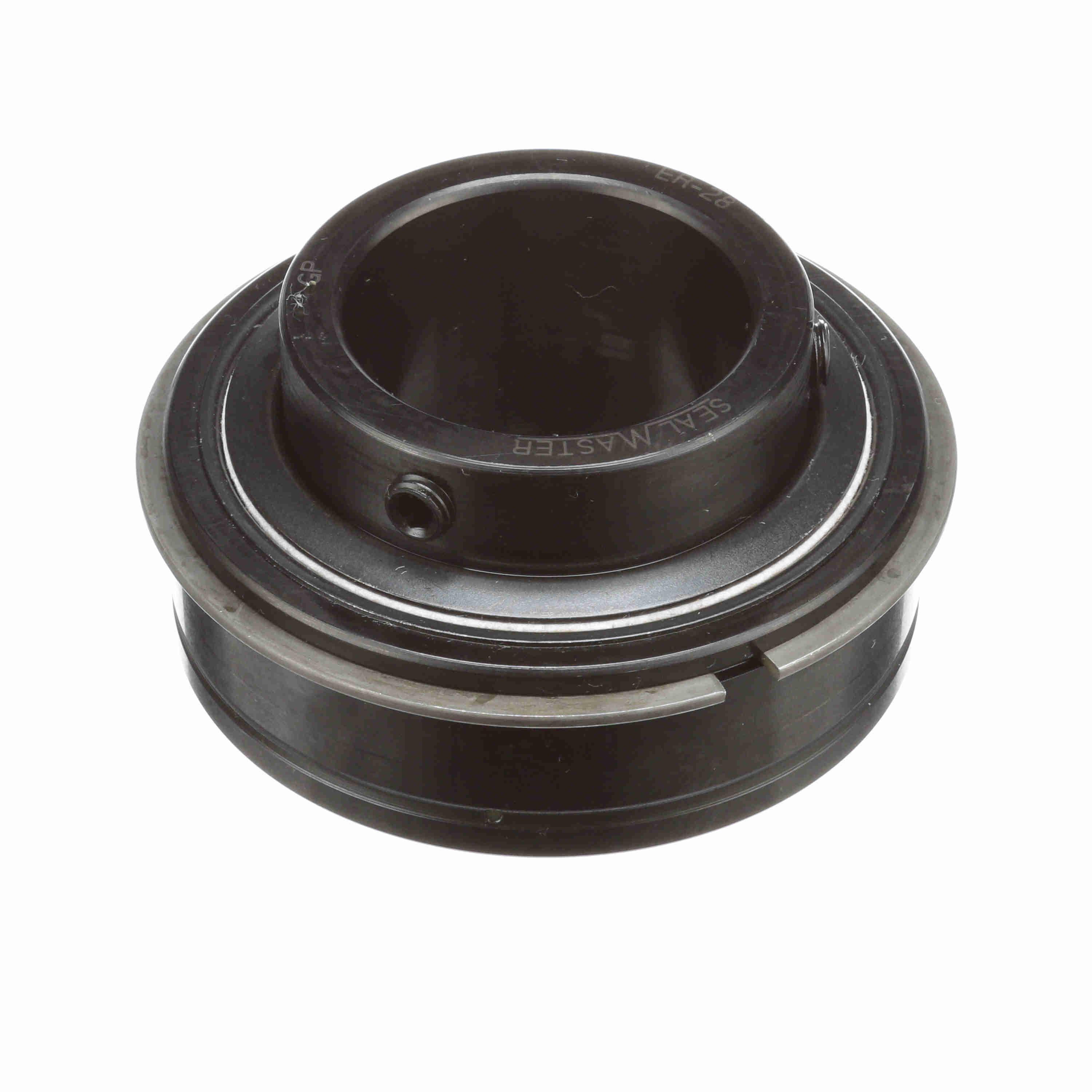

Sealmaster® gold ER bearings feature a cylindrical OD and snap ring for easy installation in a roll assembly. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.

Sealmaster® Ball Bearing Insert, Non-Expansion Standard Duty Straight Bore, Series: ER Series, 1-3/4 in Bore, 3.3465 in OD, 1 Rows, 1-15/16 in Width, Double Seal Closure, 7901 lb Dynamic/5139 lb Static Load, Steel Bearing, Felt Seal, Brass Cage, 3800 rpm Maximum, -20 to 220 deg F, Black Oxide Coated

• The Sealmaster® ER bearings outer ring is black oxide and comes standard with a locating ring and lubrication groove and lubrication inlet
• Single setscrew locking is 120 deg spaced, balanced three point contact minimizes inner ring distortion vibration, reduces noise and improves reliability
• Zone hardened inner race
• Land riding retainer
• Lithium complex NLGI #2 grease with an EP additive
• ER style cylindrical OD bearing with snap and with black oxided bearing rings_x005f Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews_x005f Felt labyrinth seal and flinger for dry and dusty environment_x005f Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication

• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_ER8_Specification_Sheet.pdf
• Instruction/Ins... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_RB10_Manual.pdf
