LEESON®

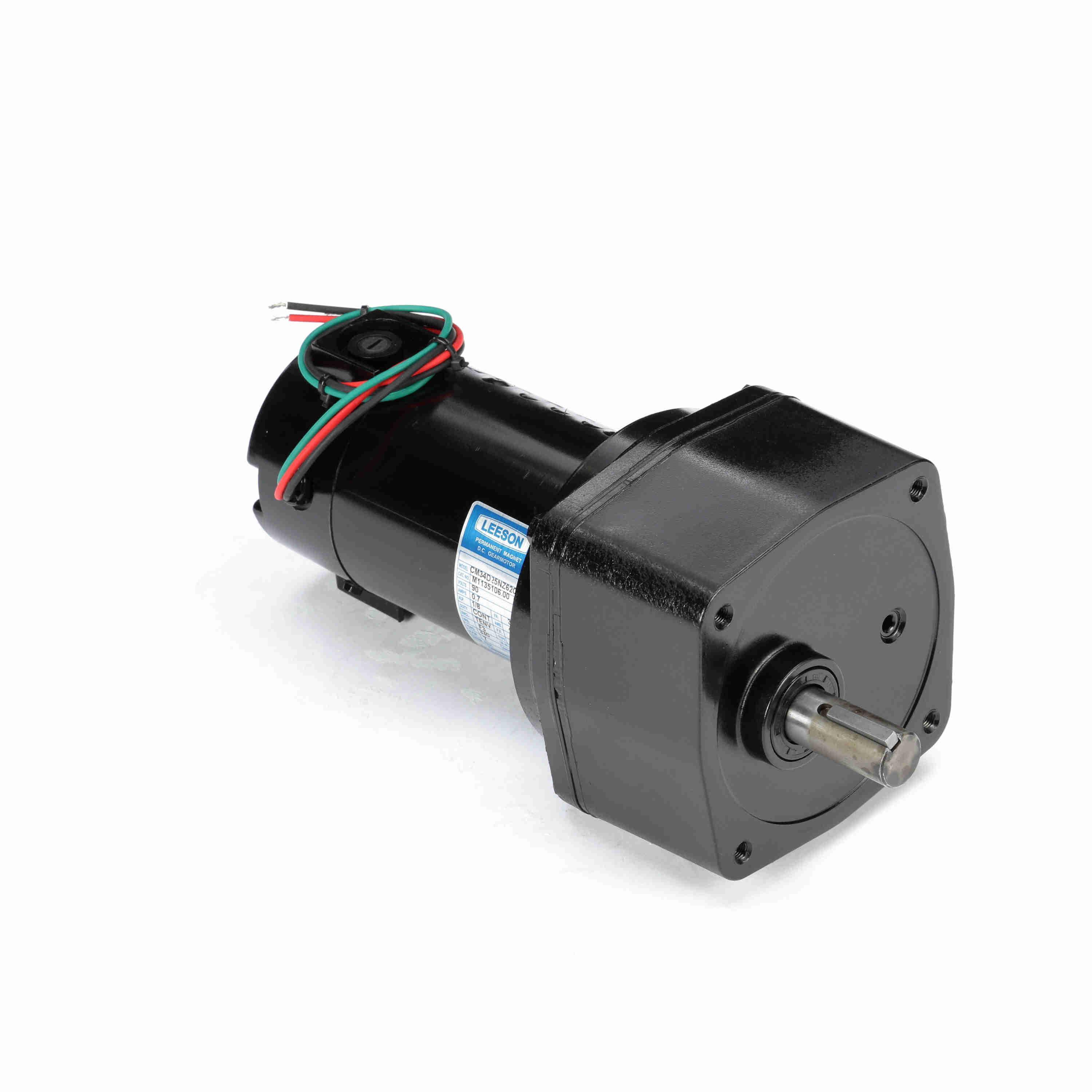

M1135106.00

LEESON® Gear Motor, Parallel Shaft Continuous Duty, Series: PE350, 90 VDC, 0.7 A Full Load Amperage, 0.13 hp, 3, 7 rpm Maximum, 3/4 in Shaft Dia, 1.62 in Shaft Length, Reversible, 330 in-lb, 336:1 Gear Ratio, Permanent Split Capacitor Motor, Ball Bearing, 565 lb Overhung Load, Special Mount, 40 deg C Ambient, Class F Insulation, Totally Enclosed Nonvented (TENV), Die Cast Aluminum Housing, 11.31 in L x 6 in W x 6.75 in H

• Precision machined gearing and hardened for maximum load capability
• Oversized output bearings for greater overhung load capacity and long life
• High carbon alloy output shaft provides maximum strength and rigidity
• All needle bearing journals are precision ground after heat treating to provide maximum fit and finish
• Heavy duty industrial oil seals keep lubricant in and dirt out
• Gears and bearings are splash lubricated with permanent, heavy duty gear oil
• Sub-fractional horsepower DC motors
• Full stainless steel exterior promotes resistance to water and chemical corrosion
• Double sealed bearings extend the lifetime of the motor by combating early signs of bearing failure
• Stainless steel output shaft seals protect against external contaminants
• Insulation systems deliver superior protection against voltage spikes
• Performance matched for continuous duty service

• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/LEESON_M1135106_00_Specification_Sheet.pdf
