Sealmaster®
701094

Sealmaster® gold ER bearings feature a cylindrical OD and snap ring for easy installation in a roll assembly. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.

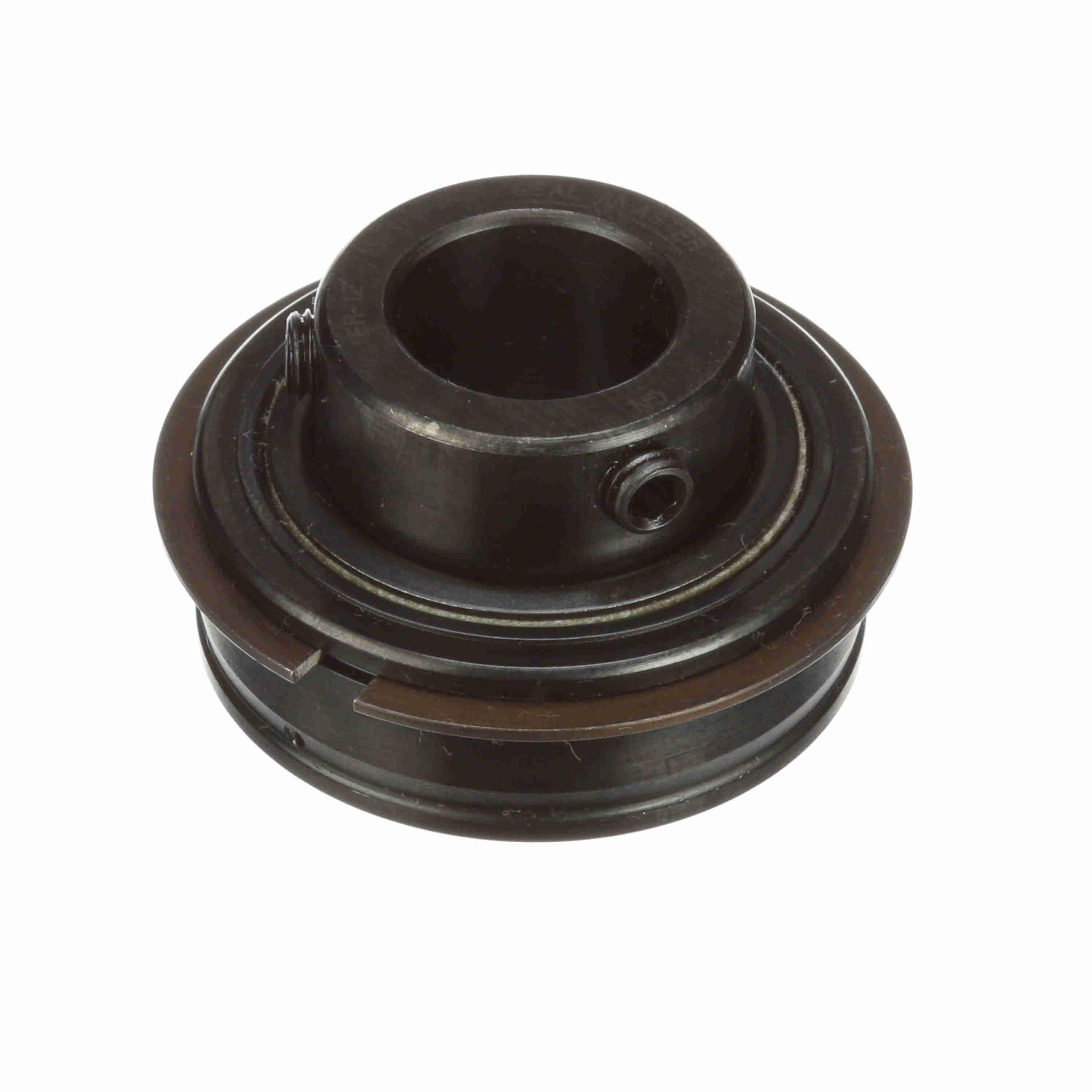

Sealmaster® Ball Bearing Insert, Straight Bore, Series: ER Series, 3-1/4 in Bore, 5.906 in OD, 3-3/8 in Width, 18681 lb Dynamic/14496 lb Static Load, Steel Bearing, Felt Seal, Brass Cage, 2125 rpm Maximum, -20 to 220 deg F, Black Oxide Coated

• Single setscrew locking
• 120 deg spaced, balanced three point contact minimizes inner ring distortion vibration, reduces noise and improves reliability
• Zone hardened inner race
• Land riding retainer
• Lithium complex NLGI #2 grease with an EP additive
• ER style cylindrical OD bearing with snap and with black oxided bearing rings_x005f Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews_x005f Felt labyrinth seal and flinger for dry and dusty environment_x005f Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_700310_Catalog.pdf
