Boston Gear®
G478Y-P

Boston Gear® G478Y-P Straight Tooth Bevel Gear, Bevel Pinion Gear, 48 Diametral Pitch, 20 deg Pressure Angle, 12 Teeth, 1/4 in Dia Pitch, 0.09 in W Face, 1/8 in Dia Bore, Brass

  • Manufacturer: Regal Rexnord
  • Brand: Boston Gear®
  • BSC Item#: G478Y-P BGW
  • MPN: G478Y-P
  • UPC: 781711121306
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

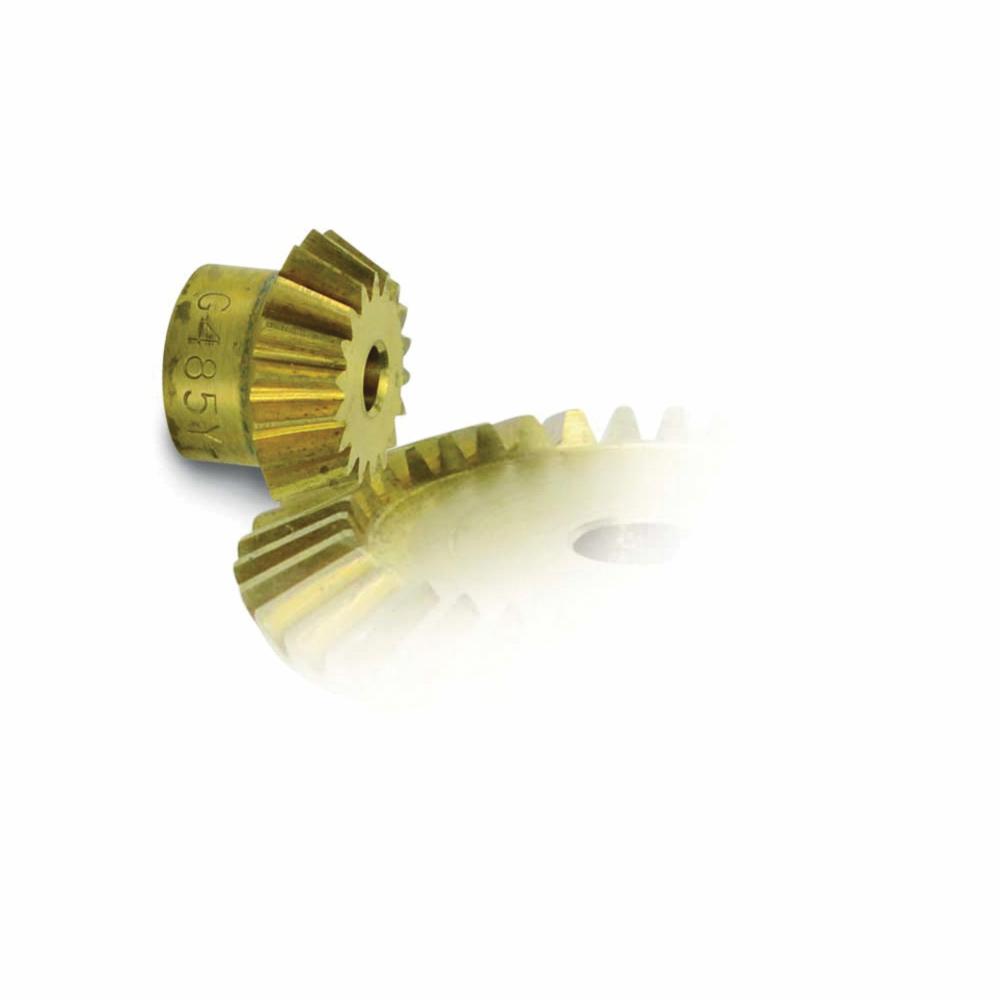

Boston bevel gears are designed for the transmission of motion and power between two intersecting shafts positioned at a right angle. Bevel gears are similar to miter gears except bevel gears are used for 1.5:1 to 6:1 ratios. Straight tooth bevel gears are cut with a generated "coniflex" tooth form providing increased life and quieter operating conditions. Spiral tooth bevel gears are better suited for higher speeds and high torque applications.

Boston Gear® Bevel Gear, Straight Tooth, Bevel Pinion Gear, 1/8 in Bore, 0.31 in OD, 3:1 Gear Ratio, 12 Teeth, 48 Diametral Pitch, 1/4 in Pitch Diameter, 0.09 in Face Width, 0.22 in Diameter Hub, 0.17 in Hub Projection, 20 deg Pressure Angle, Brass

  • Without keyway or set screws
  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Boston_Gear_1118AF12_Catalog.pdf
  • pdf Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Boston_Gear_G478YG_Specification_Sheet.pdf
Standard/Approvals      :      PROP65: This product contains lead, known to the State of California to cause cancer and birth defects or other reproductive harm.
Application      :      For use with 90 deg intersecting shaft
