Micron® 32-716578-F365
Micron® TRUE Planetary™ 32-716578-F365 DuraTRUE™ Cyclical-Duty Spur Gearhead, RediMount™ Motor Mounting System Input, Hollow Shaft Output, 5:1 Gear Ratio, 1000 rpm Maximum Output, 14 N-m Torque Rating
- Manufacturer: Thomson Industries
- Brand: Micron®
- BSC Item#: 32-716578F365 MICRON
- MPN: 32-716578-F365
- Min. Order Qty: 1
- Qty. Interval: 1 Availability: Call for Availability
- Sold As: 1/PK
-
Login to see price

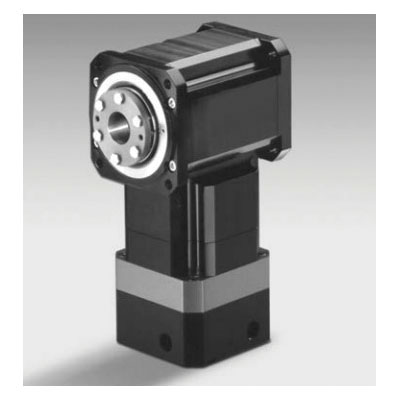

The Micron® DuraTRUE™ is a high-precision, planetary gearhead that can ship standard with the innovative RediMount™ adapter kit, allowing for quick and error-free mounting to any servo motor. With a variety of shaft configurations, you can design your system in the smallest of envelopes, eliminating the need for coupling. Featuring a "T" design that allows for running two axes with one motor, the DuraTRUE™ has many ratios in stock for immediate delivery.
Micron® TRUE Planetary™ Spur Gearhead, Cyclical-Duty, Series: DuraTRUE™, 5:1 Gear Ratio, RediMount™ Motor Mounting System Input, Hollow Shaft Output, 22 mm g6 Output, 1000 rpm Output Maximum Speed, 5000 rpm Input Maximum Speed, 14 N-m, 8 arcmin Backlash, 101 mm Centre Distance, 98 % Efficiency, Grease Lubrication, Right Angle Vertical Mount, Anodized Aluminum
- RediMount™ system provides error-free motor installation
- High torque to size ratio allows compact design
- Low backlash eliminates positioning errors due to lost motion

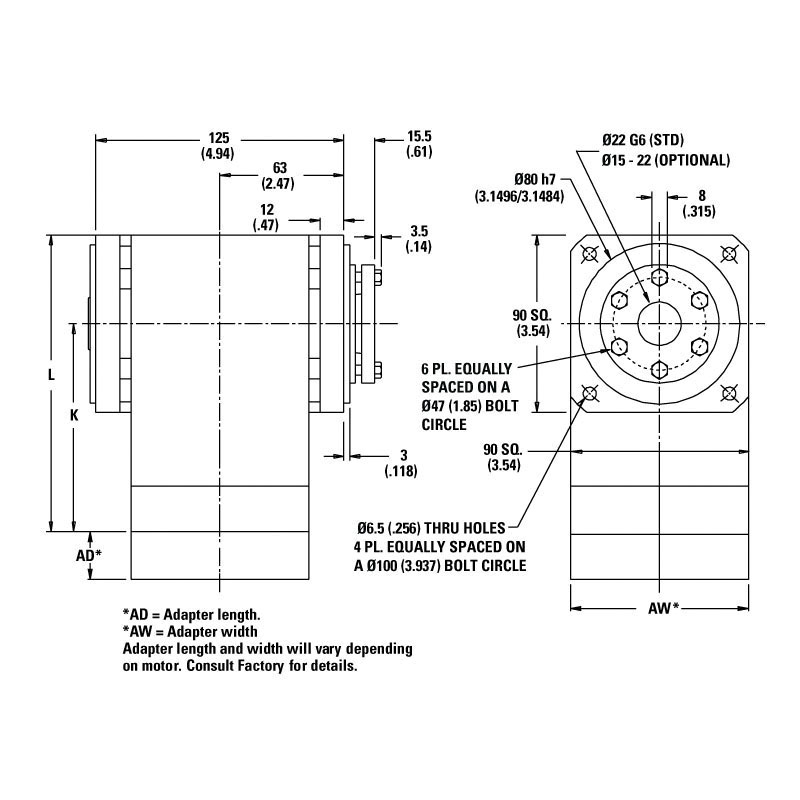

- Adapter length (AD) may vary depending on motor
- Inertia matching keeps servo system stable and in control
- High rigidity optimizes system response
- Self re-lubrication eliminates costly maintenance and downtime
- High radial load capacity mount pulleys and pinions directly on the output shaft
- Stainless steel output shaft
- Size 90 frame
- RM090-11 special RediMount™ kit
Catalog
| Standard/Approvals | : | AGMA 14|RoHS Compliant |
| Application | : | For high precision motion control applications |
