Martin
10 3V 475 SK

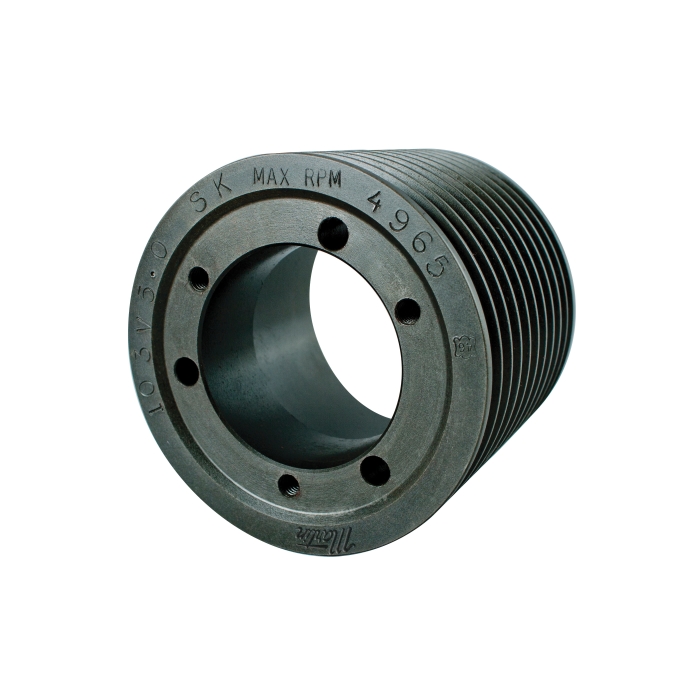

Martin Hi-Cap® 10 3V 475 SK Solid Type D-1 Wedge Stock Sheave, 1 to 2-1/8 in QD® Bushed Bore, 4-3/4 in OD, 10 Grooves, 4.7 in Dia Pitch, 4-11/32 in W Face

  • Manufacturer: Martin Sprocket & Gear
  • Brand: Martin
  • BSC Item#: 10/3V4.75QD
  • MPN: 10 3V 475 SK
  • UPC: 697950086262
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: Call for Availability

Hi-Cap® sheaves (narrow V-belts) are manufactured from class 30 gray iron (30000 tensile strength) and can have a maximum speed of 6500 fpm. All Martin sheaves are statically balanced. Dynamic balancing should be considered for any sheaves exceeding 5000 fpm or if they will be used on equipment where vibration is a problem. Martin has extensive inventories of both QD and TB style V-belt sheaves to run with 3V, 5V and 8V belts.

Martin Hi-Cap® Wedge Stock Sheave, Solid Type D-1, QD® Bushed Bore, 1 to 2-1/8 in Bore, 4-3/4 in OD, 4.7 in Pitch Diameter, 10 Grooves, 4-11/32 in Face Width, SK Bushing, 5-1/4 in Overall Length, For Use With: 3V-Cross Section V-Belts, Gray Cast Iron

Type      :      Solid Type D-1
Bore Type      :      QD® Bushed
Bore Diameter      :      1 to 2-1/8 in
Outside Diameter      :      4-3/4 in
Pitch Diameter      :      4.7 in
Number of Grooves      :      10
Face Width      :      4-11/32 in
Bushing Type      :      SK
Overall Length      :      5-1/4 in
Suitable For Use With      :      3V-Cross Section V-Belts
Material      :      Gray Cast Iron
  • Interchangeable with other manufacturer's QD bushings
  • Tolerances adhere to industry guidelines
  • Precise machining and processes ensure consistent finish and high quality
  • Statically balanced with maximum rim speed marked on print
