Boston Gear®
L138Y

Boston Gear® L138Y L Series Unhardened Straight Tooth Miter Gear Without Keyway or Setscrews, 4 Pitch, Right Hand Rotation, 20 deg Angle, 28 Teeth, 7 in Pitch, 1.43 in Face, 2 in Bore, Steel

  • Manufacturer: Regal Rexnord
  • Brand: Boston Gear®
  • BSC Item#: L138Y BGW
  • MPN: L138Y
  • UPC: 781711122280
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

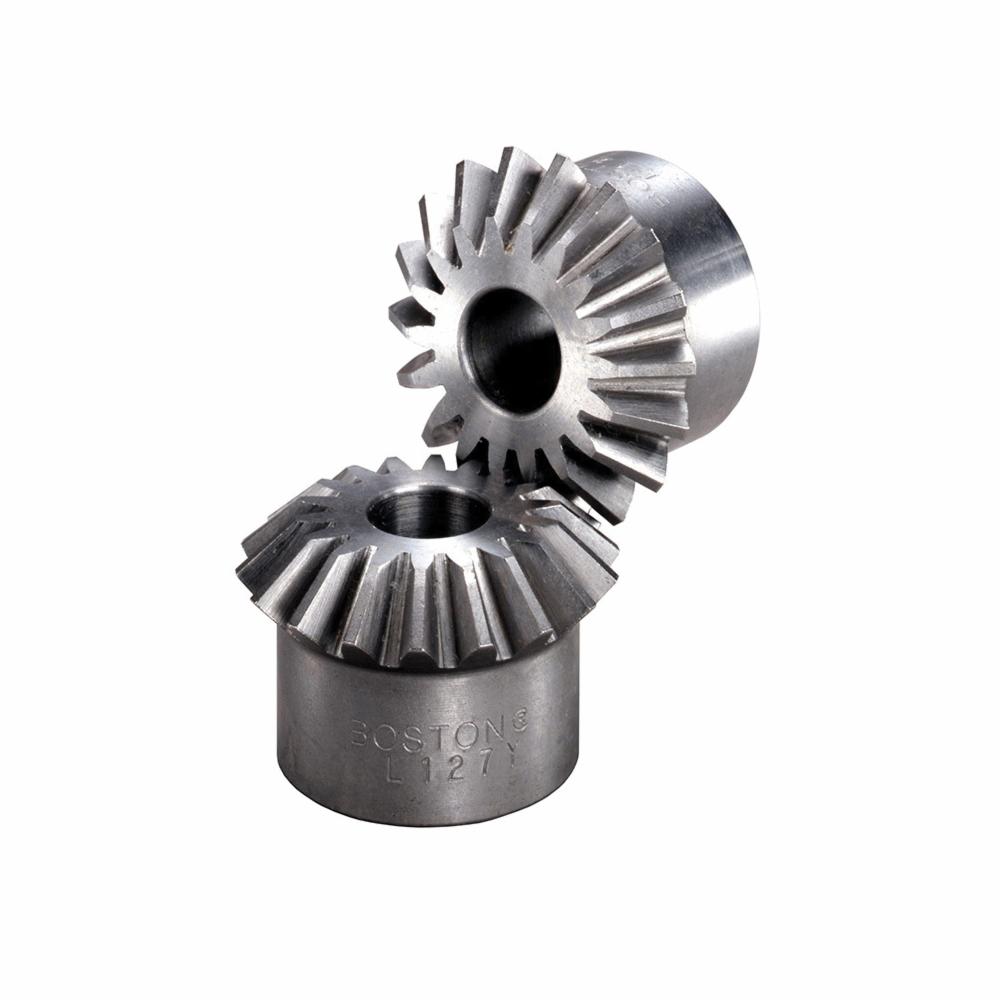

Boston miter gears are designed for the transmission of motion and power between two intersecting shafts positioned at a right angle. Miter gears are similar to bevel gears except miter gears are used for 1:1 ratios. Straight tooth miter gears are cut with a generated "Coniflex" tooth form providing increased life and quieter operating conditions. Spiral tooth miter gears are better suited for higher speeds and high torque applications.

Boston Gear® Miter Gear Without Keyway or Setscrews, Unhardened Straight Tooth, Series: L Series, 2 in Bore Dia, 7.35 in Outside Dia, 1:1 Gear Ratio, 28 Teeth, 4 Diametral Pitch, 7 in, 1.43 in Face Width, Right Hand Direction of Rotation, 5 in Hub Dia, 1.94 in Hub Projection, 20 deg Pressure Angle, Steel

  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Boston_Gear_1118AF12_Catalog.pdf
  • pdf Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Boston_Gear_G478YG_Specification_Sheet.pdf
Standard/Approvals      :      PROP65: This product contains lead, known to the State of California to cause cancer and birth defects or other reproductive harm.
Application      :      For use with 90 deg intersecting shaft
