Browning®
1005289

Browning® offers an extensive multi-groove sheave offering. This includes Browning® Split-Taper® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time our exclusive B5V® sheaves have a patented design that offers 5V horsepower in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.

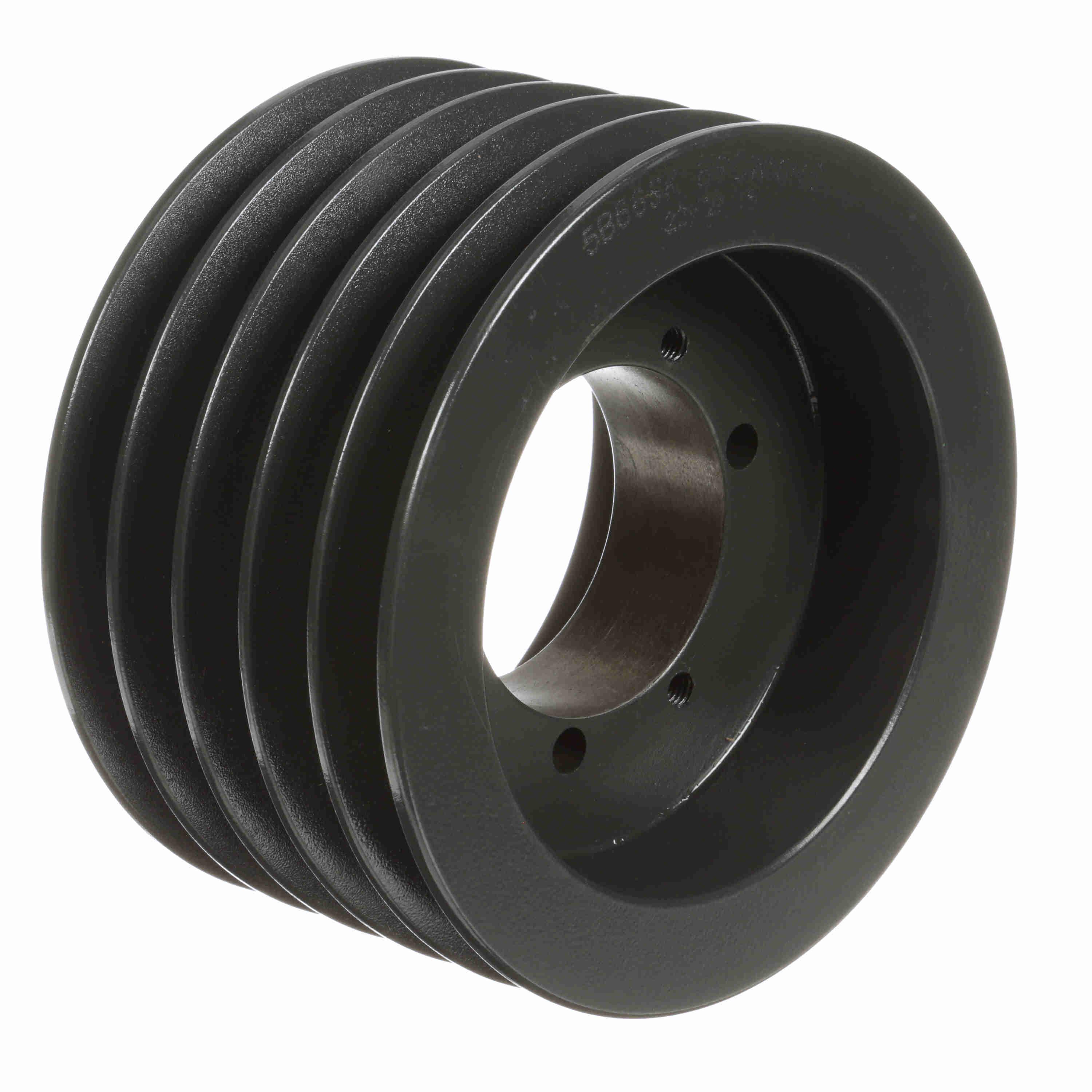

Browning® Multiple Sheave, Type A Solid, QD® Bore, 1/2 to 2-5/8 in Bore, 6.95 in OD, 6.4 in A/6.9 in B Pitch Diameter, 5 Grooves, 4 in Face Width, SK Bushing, 6.95 in Overall Length, For Use With: GripBelt® A and B Cross Section V-Belt, Cast Iron

• Combination groove all Browning® B sheaves permit the running of A and B belts to be run in them and thus providing a variety of different pitch diameters and horsepower
• Wrapped construction - Browning offers a full line of wrapped FHP Belts which provides smooth quiet operation
• Wrapped FHP Belts are more tolerant to slipping and misalignment than Raw Edge Belts
• Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible

• Instruction/Ins... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_1004910_Installation_Manual.pdf
• Warranty Inform... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_A175382_Warranty.pdf
