Martin 40BS12 1

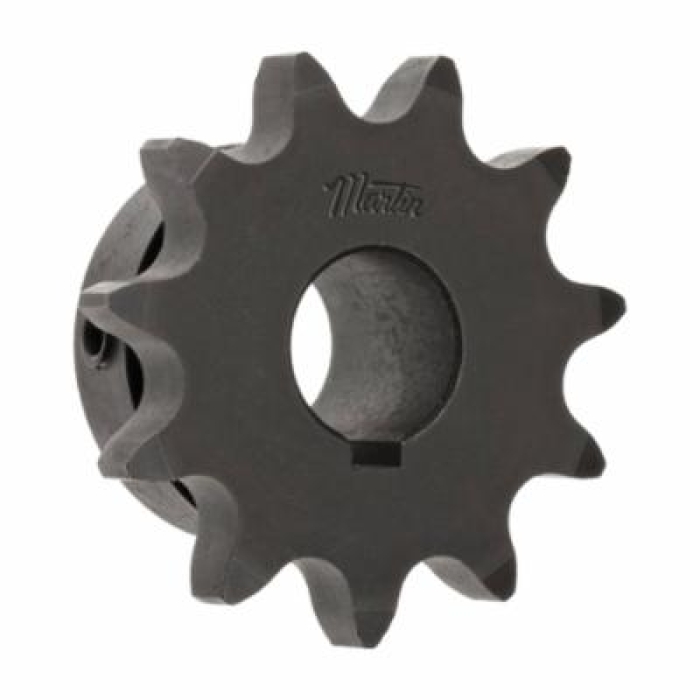

Martin 40BS12 1 Bored-to-Size Type BS Single Pitch Roller Chain Sprocket With Keyway, 1 in Dia Bore, 2.166 in OD, #40 Chain, 12 Teeth, 1/2 in Pitch, Steel
- Manufacturer: Martin Sprocket & Gear
- Brand: Martin
- BSC Item#: 40B12-1
- MPN: 40BS12 1
- UPC: 697950003740
- Min. Order Qty: 1
- Qty. Interval: 1 Availability: Call for Availability
- Sold As: 1/PK
-
Login to see price
These finished bore sprockets are shaft ready and come complete with keyways and setscrews. The keyways are on center line of the tooth. Bored to size sprockets with 1/2 in bores and smaller are stocked with (2) setscrews only.
Martin Single Pitch Roller Chain Sprocket, Bored-to-Size Type BS, 1 in Bore Dia, 2.166 in Outside Dia, #40 Chain, 12 Teeth, 1/2 in Pitch, 1.932 in, 1.593 in Hub Dia, 1/4-20 x 1/4 in Screw, 1/4 x 1/8 in Keyway, 7/8 in Length Through Bore, Steel
| Type | : | Bored-to-Size Type BS |
| Bore Diameter | : | 1 in |
| Outside Diameter | : | 2.166 in |
| Chain Size | : | #40 |
| Number of Teeth | : | 12 |
| Pitch | : | 1/2 in |
| Pitch Diameter | : | 1.932 in |
| Hub Diameter | : | 1.593 in |
| Screw Size | : | 1/4-20 x 1/4 in |
| Keyway Size | : | 1/4 x 1/8 in |
| Length Through Bore | : | 7/8 in |
| Material | : | Steel |
- Keyway is on center line of tooth
- Stock finished bores
- Non-hardened teeth
Catalog
| Standard/Approvals | : | PROP65: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov |
