Micron®
52-118681-E356

The Micron® EverTRUE™ planetary gearhead, which is designed to run in a continuous duty cycle, is lubricated for life and rated to last a minimum of 30000 hr in a 24 hr/day, 7 day/week application. Plus, Micron® innovative RediMount™ adapter kit allows for quick and error-free mounting to any servo motor.

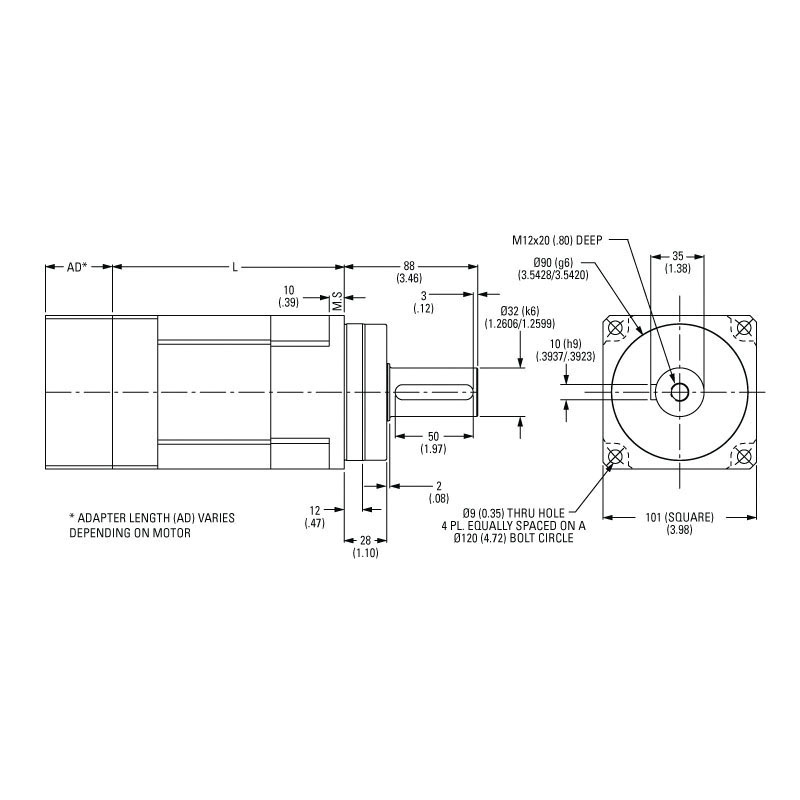

Micron® TRUE Planetary™ Spur Gearhead, Continuous-Duty, Series: EverTRUE™, 5:1 Gear Ratio, RediMount™ Motor Mounting System Input, Single Shaft Output, 32 mm k6 Output, 1000 rpm Output Maximum, 5000 rpm Input Maximum, 95 N-m Torque, 4 arcmin Backlash, 50 mm L x 10 mm h9 W x 35 mm H Keyway, 95 % Efficiency, Grease Lubrication, In-Line Vertical Mounting, Anodized Aluminum, 101 mm W x 101 mm H Dimensions

• RediMount™ system provides error-free motor installation
• Lubricated for life and no maintenance
• 3 times the life and all units rated at 30000 hr life
• Designed to run 24 hr/day and 7 days/week
• Stainless steel output shaft
• Size 10 frame
• RM100-2 RediMount™ kit
