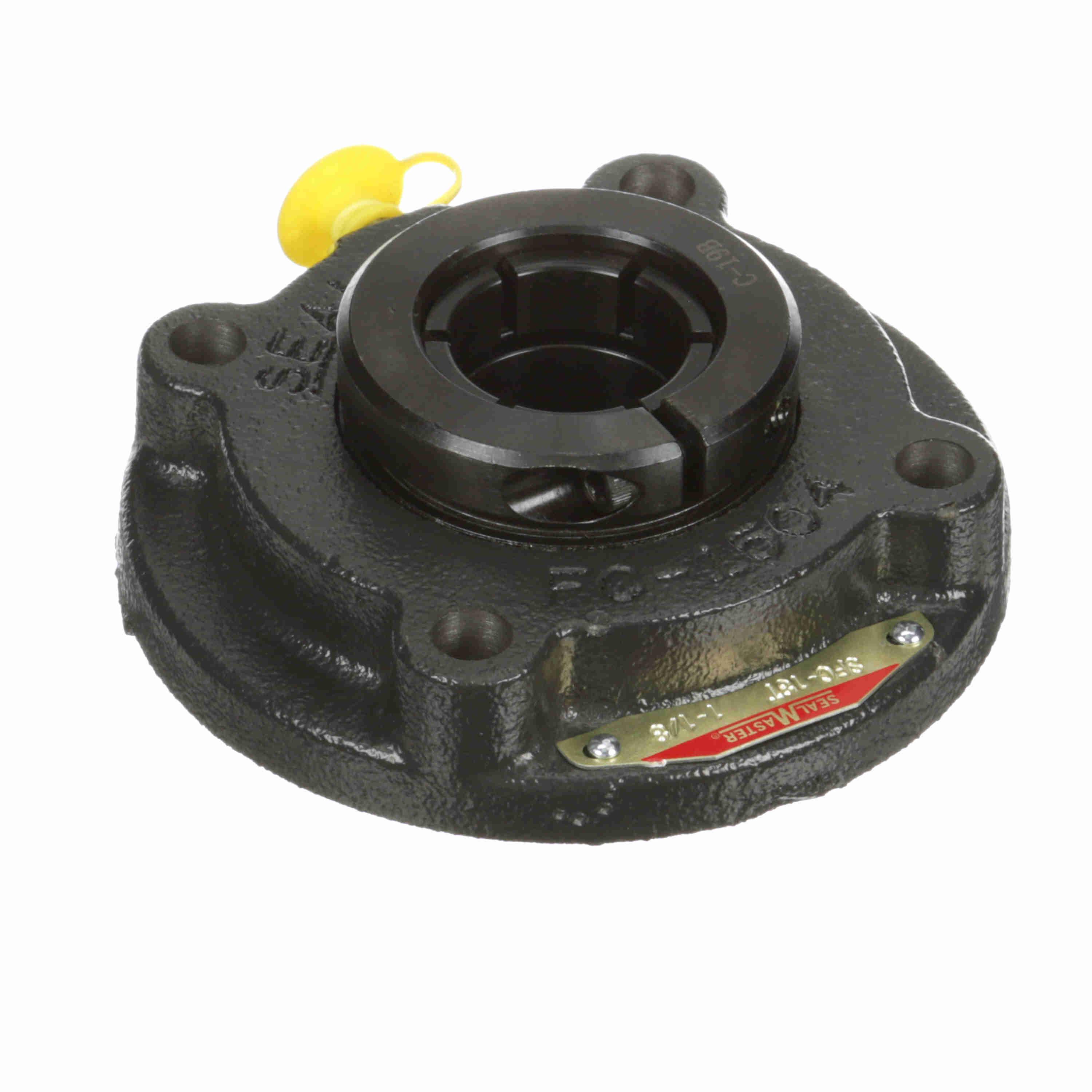

Sealmaster®
705461

Sealmaster® gold mounted ball bearings feature wide outer race insert bearing with a land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system. This provides a direct path for lubrication into the bearing. It also helps prevent outer ring rotation. Available with either setscrew or Skwezloc®concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex®HP grease loss and friction.

Sealmaster® Ball Bearing Unit, Non-Expansion Standard Duty Round/Straight Bore, Series: SFC-T, 1-1/8 in Bore, 3-5/8 in Diameter Bolt Circle, 4-Bolt Flange Mounting, 4-3/8 in Overall Length/Diameter, 1-5/8 in Overall Depth, 4-3/8 in Overall Height, Skwezloc® Collar Locking Device, 52100 Steel Bearing, Felt Seal, 4381 lb Dynamic Load, 7600 rpm Maximum, 250 deg F, Uncoated

• The felt seal with flinger provides a tight labyrinth seal which retains lubrication and acts as a filter to exclude contamination
• Skwezloc® is a concentric collar clamp design that results in near perfect concentricity of the shaft to the bearing bore
• All bearings are assembled with a controlled housing fit between the bearing outer ring and housing bore
• Metal nameplate riveted to the housing allows for easy identification even after years of operation
• +/- 2 deg static misalignment
• Wide black oxided outer ring with direct lubrication inlet hole
• Wide zone hardened inner ring
• Flange cartridge housing
• Powder coated epoxy cast iron housing with extended inner ring bearings
• Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication
• Sealmaster exclusive lock pin and dimple for direct lubrication and anti-rotation
