Martin TS614

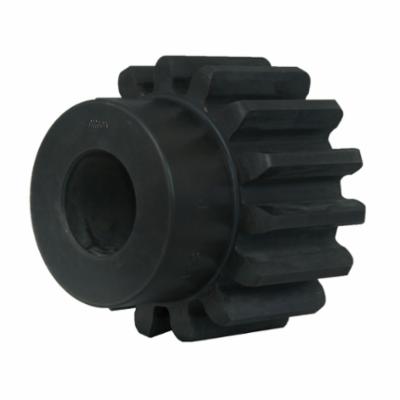

Martin TS614 External Tooth Reborable Stock Spur Gear, 6 Diametral Pitch, 20 deg Pressure Angle, 2 in W Face, 14 Teeth, 2.333 in Dia Pitch, 1 in Dia Bore, Steel
- Manufacturer: Martin Sprocket & Gear
- Brand: Martin
- BSC Item#: TS614 MART
- MPN: TS614
- UPC: 697950263854
- Min. Order Qty: 1
- Qty. Interval: 1 Availability: Call for Availability
-
Login to see price
Martin stock spur gears are available in five different styles. Steel gears are furnished in plain style and plain style with hub. Cast gears are furnished, plain with hub, web with lightening holes, and spoke. Cast gears are machined on all operating surfaces. Martin cast gears are cast with a larger hub to provide extra strength and to allow for larger bores. Spur gears are stocked in both 14-1/2 and 20 deg pressure angles.
Martin Stock Spur Gear, External Tooth Reborable, 1 in Bore Dia, 2.666 in Outside Dia, 14 Teeth, 6 Diametral Pitch, 2.333 in, 2 in Face Width, Type B, 1.812 in Hub Dia, 7/8 in Hub Projection, 2-7/8 in Overall Length, 20 deg Pressure Angle, Steel
- Precise machining and processes ensure consistent finish and high quality
- Commercial Class Gear. AGMA 6-8
