Climax
C170M-13x23

Single-taper, self-centering design with mounting flange for use in through-bored components with smaller pitch/outside diameters. Mounted component remains fixed axially during installation. View Catalog Page

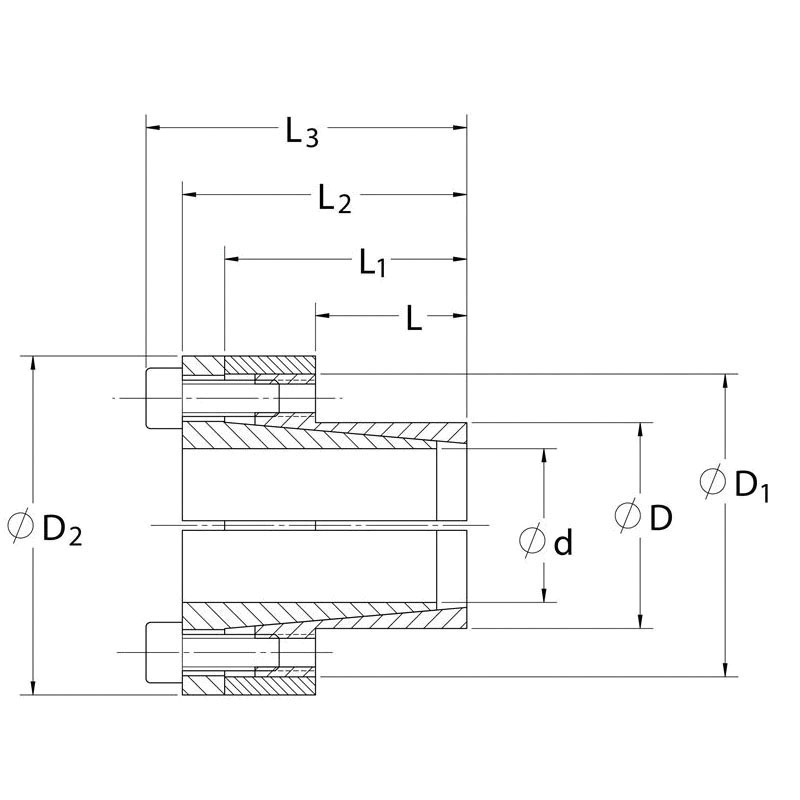

Climax Keyless Locking Assembly, Series: C170, 13 mm Bore Dia, 23 mm Outside Dia, 1.18 in Hub Dia, 47 ft-lb Transmissible Torque, 2191 lbf Transmissible Thrust, 20598 psi Shaft Contact Pressure, 11643 psi Hub Contact, M4x10 Screw, 1.24 in Overall Length, 0 to 400 deg F, Steel

• Single-taper, self-centering design with mounting flange for use in through-bored components with smaller pitch/outside diameters
• Mounted component remains fixed axially during installation
• Locking assemblies install as bushings between the shaft and the component bore, creating a high pressure mechanical interference fit
• As the annular high-strength screws are tightened, internal tapers simultaneously apply radial force on the shaft and the component bore
• No key means infinite radial and axial positioning for precise alignment and timing
• Self-locking tapers on most designs mean the connection will not loosen under dynamic loading, even high shock, reversing or vibration
