Browning®
767694

Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.

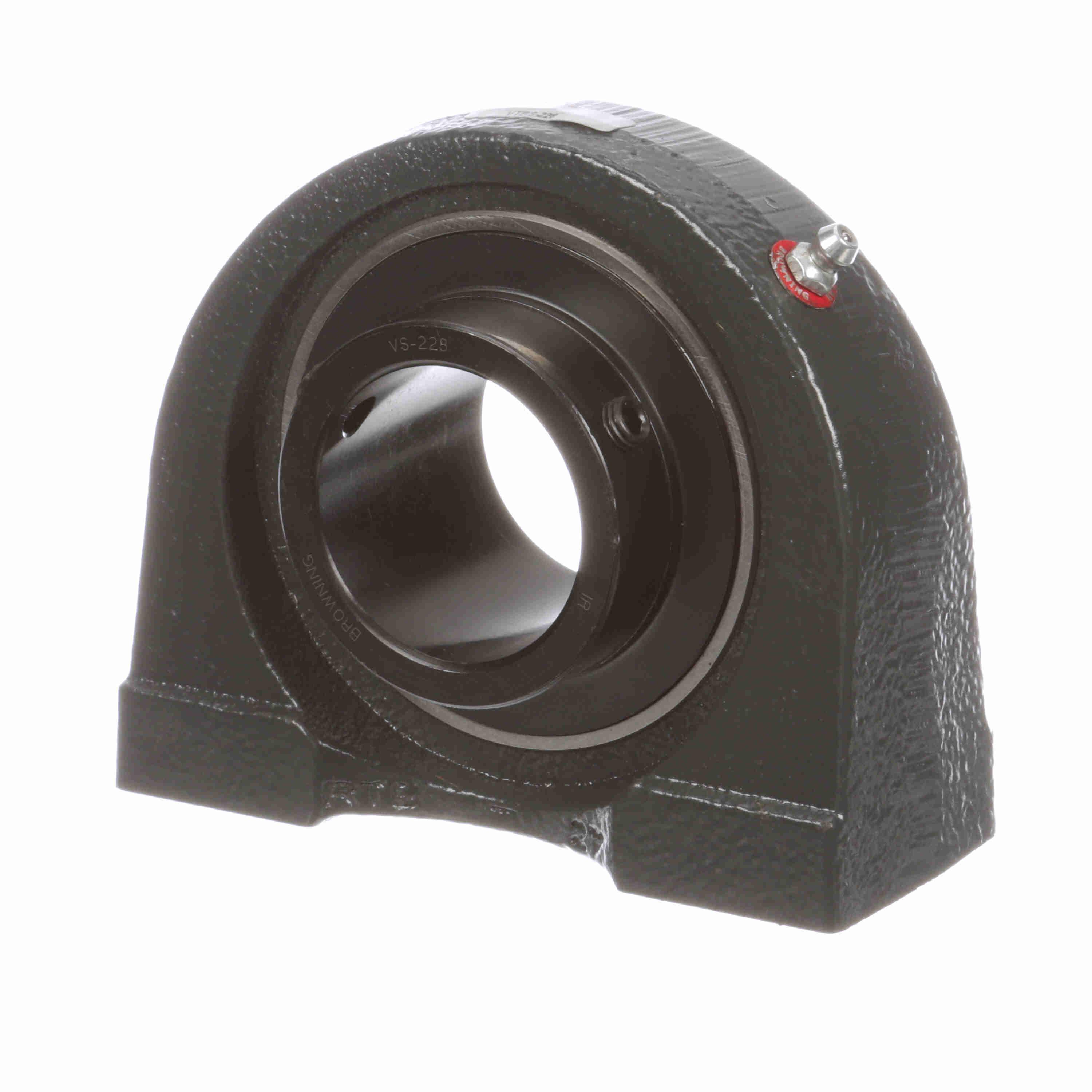

Browning® Pillow Block Ball Bearing Unit, Normal Duty, Series: VTBS 200, 1-3/4 in Bore, 3-3/4 in Bolt Center-to-Center Length, 2-1/8 in Base to Bore Centerline, 5 in Overall Length, 4-1/4 in Overall Height, Tapped Base Mounting, Round Bore, 2 in Base Width, Set Screw Locking Device, Single Lip Contact with Flinger Seal, Non-Expansion (Fixed) Expansion, 7901 lb Dynamic/5139 lb Static Load, 200 to 250 deg F, 3000 rpm Maximum, Cast Iron, Gray Painted

• An anti-rotation rivet prevents outer ring creep or rotation within the housing
• Semi solid cast iron rugged base design provides an excellent mounting foundation
• Setscrew locking is 120 deg spaced, balanced three-point contact minimizes inner ring distortion vibration while reducing noise and improving reliability
• Nylon retainer
• 52100 bearing steel insert
• Alemite fitting lubrication
• Powder coat epoxy cast iron housing_x005f Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews_x005f Single lip contact seal and flinger
