Sealmaster®
711304

Sealmaster® PN gold mounted bearings feature high phosphorus, electroless nickel coated steel insert with patented seal technology available in either setscrew or Skwezloc® concentric locking collar, within a variety of 316 stainless casting high strength composite fluoropolymer coated cast iron housing configurations. The high performance triple lip seal is the latest innovation of over 10 patents on sealing technology. The combination of stainless flingers and FKM lip materials provide a strong contaminant resistance and GoldPlex® FG (USDA H1) food grade grease loss. Specially engineered for industries with corrosive wash down environments such as food and beverage, pharmaceuticals and chemical processing. PN Gold mounted ball bearings provide outstanding performance in demanding corrosive environments.

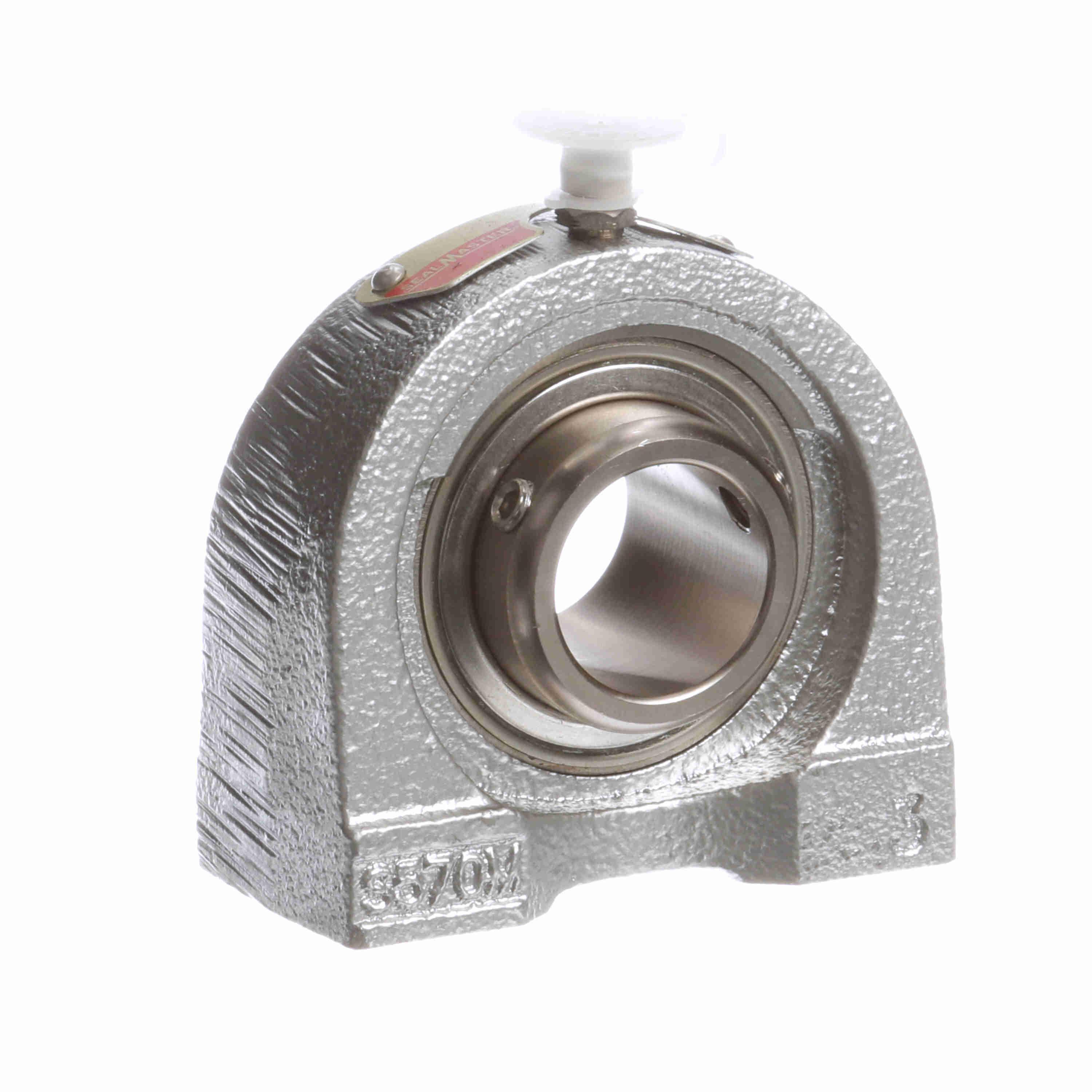

Sealmaster® Pillow Block Ball Bearing Unit, Standard-Duty, Series: CRTBF-PN, 1-1/4 in Bore, 3-1/4 in Bolt Center-to-Center Length, 1-7/8 in Base to Bore Centerline, 4-1/4 in Overall Length, 1-11/16 in Overall Width, 3-3/4 in Overall Height, Tapped Base Mounting, Round Bore, 1-7/8 in Base Width, Set Screw Locking Device, High Performance Seal, Non-Expansion (Fixed) Expansion, 5782 lb Dynamic Load, 250 deg F, 2000 rpm Maximum, Cast Iron, Fluoropolymer Coated

• Wide outer race
• Specialized food grade lubrication
• Lithium complex grease
• 52100 phosphorus nickel plated steel bearing
• High phosphorous electroless nickel plated 52100 steel for exceptional corrosion resistance
• High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
• Zone hardened inner ring with 120 deg spacing setscrew lock with corrosion resistant setscrews
• Exclusive locking pin and dimple system provides a direct lubricant into the bearing cavity and ball path instead of around a lubrication groove, prevents outer ring rotation
• Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication
• Tapered Lands ensures that lubricant will be easily redirected back to the raceway
• USDA H1 complaint food grade grease
