RBC®
KP5AFS428

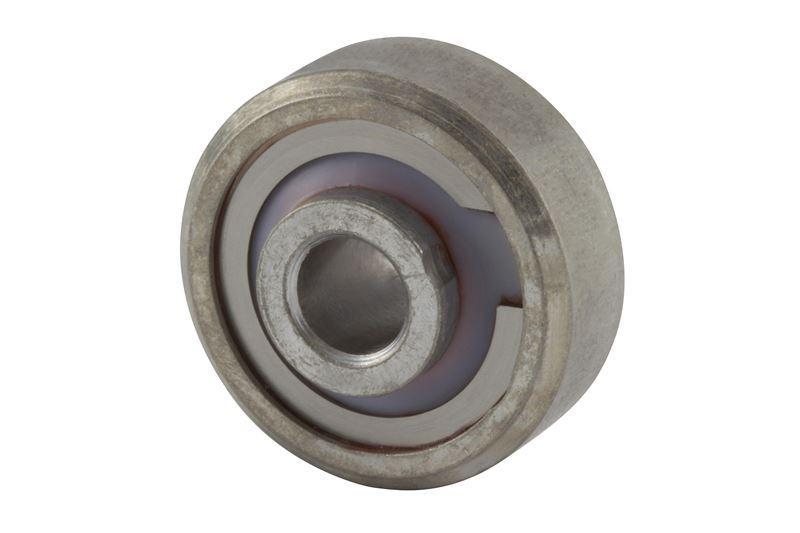

RBC® KP5AFS428 KP-A Standard Airframe Bearing, Ball Bearing, 5/16 in Dia Bore, 13/16 in OD, 0.297 in W, 2190 lb Load

  • Manufacturer: RBC Bearings Incorporated
  • Brand: RBC®
  • BSC Item#: KP5A-FS428 RBC
  • MPN: KP5AFS428
  • UPC: 637400552299
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

RBC® Airframe Bearing, Standard, Series: KP-A, Ball Bearing, 5/16 in Bore Dia, 1 Row, 13/16 in Outside Dia, 0.297 in W, 2190 lb, 52100 Steel Bearing, PTFE Seal, -65 to 250 deg F, Cadmium

  • Single row medium duty deep groove airframe control ball bearing
  • CRES seal caps
  • Exposed surfaces except bore, caps and seals are cadmium plated
  • Prelubricated for life
  • This bearing is not intended for use in any aerospace application
  • Contact seals
  • Aeroshell 33® type 1 grease
  • 2190 lb dynamic/2190 lb static
  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RBC_10NBC1620YZP_Catalog.pdf
Standard/Approvals      :      ABMA|ASPR|CAS|DFAR|FAR Standards|MIL-PRF-23827 Military Specification|NASC|SAE-AS27641|SAE AS7949
Application      :      For use in industrial applications that necessitate the most stringent tolerances
